首頁進口晶振愛普生晶振EG-2121CA160.000000MHzPGSA,愛普生差分輸出晶振,7050mm有源晶振

EG-2121CA160.000000MHzPGSA,愛普生差分輸出晶振,7050mm有源晶振

編號：85667765
頻率：160MHz
尺寸：7.0×5.0mm

日本愛普生晶振,進口晶體振蕩器,LV-PECL差分晶振,EG-2121CA有源晶振,EG-2121CA160.000000MHzPGSA晶振,頻率160MHz,電壓2.5V,工作溫度-20~70°C,頻率容差50ppm,尺寸7050mm,六腳石英SMD晶振,智能手機晶振,藍牙模塊晶振,可...

分享到

EG-2121CA160.000000MHzPGSA,愛普生差分輸出晶振,7050mm有源晶振 ,日本愛普生晶振,進口晶體振蕩器,LV-PECL差分晶振,EG-2121CA有源晶振,EG-2121CA160.000000MHzPGSA晶振,頻率160MHz,電壓2.5V,工作溫度-20~70°C,頻率容差50ppm,尺寸7050mm,六腳石英SMD晶振,智能手機晶振,藍牙模塊晶振,可視智能家居晶振,網絡終端晶振,智能家用電器晶振.

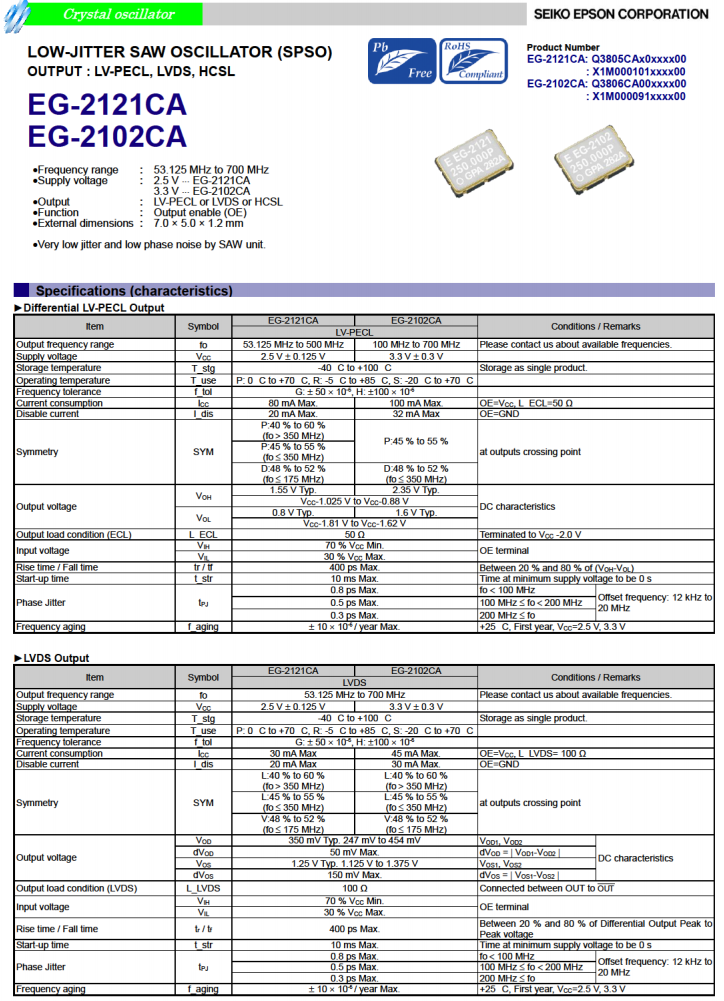

EG-2121CA160.000000MHzPGSA,愛普生差分輸出晶振,7050mm有源晶振參數表

項目	符號	規格說明	條件
額定頻率	f_nom	160MHz	請聯系我們以便獲取其它可用頻率的相關信息
電源電壓	Vcc	2.5V±0.125V
儲存溫度	T_stg	-40℃~+100℃	裸存
工作溫度	T_use	-20℃~ +70℃
頻率公差（標準）	f_tol	±50 ppm	+25℃,超出標準的規格說明請聯系我們以便獲取相關信息
電流消耗	f_tem	80mA Max	OE=Vcc,L ECL=50Ω
禁用電流	I_dis	20mA Max	OE=GND
對稱性（占空比）	SYM	40%~60%	在輸出交叉點
輸出電壓（LV-PECL)	VOH	1.55V Typ	DC charactenistics
輸出電壓（LV-PECL)	VOL	0.8V Typ	DC charactenistics
輸出負載條件	L _ECL	50Ω	Terminated to GND
輸入電壓	VIH	70%Vcc Min	OE terminal
輸入電壓	VIL	30%Vcc Max	OE terminal
上升下降時間	tr/tf	400ps Max	Between 20% and 80% of (VOH+VOL)
起始時間	t str	10ms Max	Time at minimum supply voltage to be 0
相位抖動	tpj	0.5ps Max	100MHz≤fo<200MHz
老化	f_aging	±10ppm/year	+25℃,第一年，Vcc=2.5V,3.3V

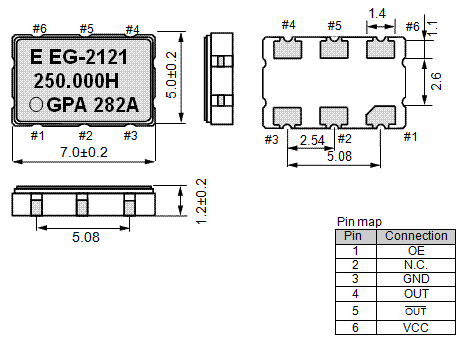

EG-2121CA160.000000MHzPGSA,愛普生差分輸出晶振,7050mm有源晶振 尺寸圖

編碼	型號	頻率	尺寸	輸出方式	電源電壓
X1M0000910002	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V
X1M0000910003	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V
X1M0000910004	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V
X1M0000910005	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V
X1M0000910006	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V
X1M0000910007	EG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V
X1M0000910008	EG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V
X1M0000910009	EG-2102CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V
X1M0000910010	EG-2102CA	322.265625 MHz	7.00 x 5.00 x 1.20 mm	HCSL	3.000 to 3.600 V
X1M0001010002	EG-2121CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	HCSL	2.375 to 2.625 V
X1M0001210001	EG-2103CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	3.000 to 3.600 V
X1M0002010002	EG-2102CB	150.000000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V
X1M0002010003	EG-2102CB	133.000000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V
X1M0002010004	EG-2102CB	156.250000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V
X1M0002010005	EG-2102CB	212.500000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V
X1M0002010006	EG-2102CB	644.531300 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V
X1M0002010007	EG-2102CB	625.000000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V
X1M0002010008	EG-2102CB	100.000000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V
X1M0002010009	EG-2102CB	150.000000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V
X1M0002010010	EG-2102CB	106.250000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.970 to 3.630 V
X1M0002110001	EG-2121CB	156.250000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.375 to 2.625 V
X1M0002110002	EG-2121CB	212.500000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.375 to 2.625 V
X1M0002110003	EG-2121CB	156.250000 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.375 to 2.625 V
X1M0002110004	EG-2121CB	322.265625 MHz	5.00 x 3.20 x 1.40 mm	LV-PECL	2.375 to 2.625 V
X1M0002210002	EG-2102CB	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V
X1M0002210003	EG-2102CB	125.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V
X1M0002210004	EG-2102CB	266.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V
X1M0002210005	EG-2102CB	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V
X1M0002210006	EG-2102CB	148.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V
X1M0002210007	EG-2102CB	100.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V
X1M0002210008	EG-2102CB	148.351648 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V
X1M0002210009	EG-2102CB	148.350000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V
X1M0002210010	EG-2102CB	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V
X1M0002210011	EG-2102CB	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V
X1M0002310002	EG-2121CB	125.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V
X1M0002310003	EG-2121CB	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V
X1M0002310004	EG-2121CB	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V
X1M0002310005	EG-2121CB	402.832000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V
X1M0002310006	EG-2121CB	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V
X1M0002310007	EG-2121CB	133.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V
X1M0002310010	EG-2121CB	500.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V
X1M0002310011	EG-2121CB	402.832031 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V
X1M0002310013	EG-2121CB	100.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V
X1M0002310014	EG-2121CB	441.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V
X1M0002310015	EG-2121CB	625.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V
X1M0002310016	EG-2121CB	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V
X1M0002310017	EG-2121CB	644.531250 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V
X1M0002310018	EG-2121CB	322.265625 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V
X1M0002310019	EG-2121CB	233.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V
X1M0002310020	EG-2121CB	200.000000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V
X1M0002310021	EG-2121CB	644.531250 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.375 to 2.625 V
X1M0002810003	EG-2103CB	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V
X1M0002810004	EG-2103CB	212.500000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V
X1M0002810006	EG-2103CB	156.250000 MHz	5.00 x 3.20 x 1.20 mm	LVDS	2.970 to 3.630 V
