首頁歐美晶振 ECS晶振ECS-110.5-18-18-TR,SMD晶體諧振器,6G低成本晶振

ECS-110.5-18-18-TR,SMD晶體諧振器,6G低成本晶振

編號：54147602
頻率：11.0592MHz
尺寸：11.8 x 5.5 mm

美國伊西斯晶振.CSM-12無源晶振,SMD晶體諧振器,ECS-110.5-18-18-TR晶振,石英晶體,頻率11.0592MHz,負載18pF,工作溫度-10~70°C,頻率容差30ppm,無鉛環保晶振,6G低成本晶振,儀器儀表晶振,智能家居晶振,藍牙模塊晶振,網絡...

分享到

ECS-110.5-18-18-TR,SMD晶體諧振器,6G低成本晶振,美國伊西斯晶振.CSM-12無源晶振,SMD晶體諧振器,ECS-110.5-18-18-TR晶振,石英晶體,頻率11.0592MHz,負載18pF,工作溫度-10~70°C,頻率容差30ppm,無鉛環保晶振,6G低成本晶振,儀器儀表晶振,智能家居晶振,藍牙模塊晶振,網絡產品晶振.

ECS-110.5-18-18-TR,SMD晶體諧振器,6G低成本晶振特點：
•成本效益高
•低調
•工業溫度范圍
•符合RoHS標準

ECS-110.5-18-18-TR,SMD晶體諧振器,6G低成本晶振參數表

PARAMETERS	CONDITIONS	CSM-4AX			UNITS
		MIN	TYP	MAX
Frequency		3.57		30.000	MHz
Mode of Oscillation	Fundamental
Frequency Tolerance*	@ +25°C			± 30	ppm
Frequency Stability*	-10 ~ +70°C			± 50	ppm
Shunt Capacitance	Co			7	pF
Load Capacitance	Specify in P/N	10	20	Series	pF
Drive Level	DL			100	μW
Operating Temperature*	Topr	-10		+70	°C
Storage Temperature	Tstg	-55		+125	°C
Aging (First Year)	@ +25°C ±3°C			±5	ppm

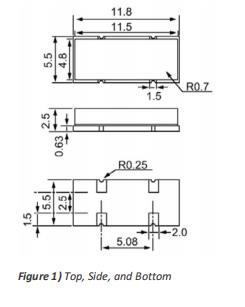

ECS-110.5-18-18-TR,SMD晶體諧振器,6G低成本晶振尺寸圖

ECS原廠編碼	型號	頻率	頻率偏差	負載電容	工作溫度
ECS-100-18-18-TR	CSM-12	10MHz	±30ppm	18pF	-40°C ~ 85°C
ECS-110.5-18-18-TR	CSM-12	11.0592MHz	±30ppm	18pF	-40°C ~ 85°C
ECS-110.5-20-18-TR	CSM-12	11.0592MHz	±30ppm	20pF	-40°C ~ 85°C
ECS-110.5-S-18-TR	CSM-12	11.0592MHz	±30ppm	Series	-40°C ~ 85°C
ECS-112.896-18-18-TR	CSM-12	11.2896MHz	±30ppm	18pF	-40°C ~ 85°C
ECS-120-18-18-TR	CSM-12	12MHz	±30ppm	18pF	-40°C ~ 85°C
ECS-120-S-18-TR	CSM-12	12MHz	±30ppm	Series	-40°C ~ 85°C
ECS-122.8-18-18-TR	CSM-12	12.288MHz	±30ppm	18pF	-40°C ~ 85°C
ECS-143-20-18-TR	CSM-12	14.31818MHz	±30ppm	20pF	-40°C ~ 85°C
ECS-143-S-18-TR	CSM-12	14.31818MHz	±30ppm	Series	-40°C ~ 85°C
ECS-147.4-18-18-TR	CSM-12	14.7456MHz	±30ppm	18pF	-40°C ~ 85°C
ECS-153.6-18-18-TR	CSM-12	15.36MHz	±30ppm	18pF	-40°C ~ 85°C
ECS-160-18-18-TR	CSM-12	16MHz	±30ppm	18pF	-40°C ~ 85°C
ECS-160-S-18-TR	CSM-12	16MHz	±30ppm	Series	-40°C ~ 85°C
ECS-166.66-18-18-TR	CSM-12	16.666MHz	±30ppm	18pF	-40°C ~ 85°C
ECS-184-18-18-TR	CSM-12	18.432MHz	±30ppm	18pF	-40°C ~ 85°C
ECS-184-S-18-TR	CSM-12	18.432MHz	±30ppm	Series	-40°C ~ 85°C
ECS-196.6-S-18-TR	CSM-12	19.6608MHz	±30ppm	Series	-40°C ~ 85°C
ECS-200-18-18-TR	CSM-12	20MHz	±30ppm	18pF	-40°C ~ 85°C
ECS-200-20-18-TR	CSM-12	20MHz	±30ppm	20pF	-40°C ~ 85°C
ECS-200-S-18-TR	CSM-12	20MHz	±30ppm	Series	-40°C ~ 85°C
ECS-204.8-18-18-TR	CSM-12	20.48MHz	±30ppm	18pF	-40°C ~ 85°C
ECS-221-18-18-TR	CSM-12	22.1184MHz	±30ppm	18pF	-40°C ~ 85°C
ECS-240-16-18-TR	CSM-12	24MHz	±30ppm	16pF	-40°C ~ 85°C
ECS-240-18-18-TR	CSM-12	24MHz	±30ppm	18pF	-40°C ~ 85°C
ECS-240-20-18-TR	CSM-12	24MHz	±30ppm	20pF	-40°C ~ 85°C
ECS-245.7-18-18-TR	CSM-12	24.576MHz	±30ppm	18pF	-40°C ~ 85°C
ECS-250-18-18-TR	CSM-12	25MHz	±30ppm	18pF	-40°C ~ 85°C
ECS-35-17-18-TR	CSM-12	3.579545MHz	±30ppm	17pF	-40°C ~ 85°C
ECS-35-18-18-TR	CSM-12	3.579545MHz	±30ppm	18pF	-40°C ~ 85°C
ECS-36-18-18-TR	CSM-12	3.6864MHz	±30ppm	18pF	-40°C ~ 85°C
ECS-36-20-18-TR	CSM-12	3.6864MHz	±30ppm	20pF	-40°C ~ 85°C
ECS-36-S-18-TR	CSM-12	3.6864MHz	±30ppm	Series	-40°C ~ 85°C
ECS-40-18-18-TR	CSM-12	4MHz	±30ppm	18pF	-40°C ~ 85°C
ECS-40-20-18-TR	CSM-12	4MHz	±30ppm	20pF	-40°C ~ 85°C
ECS-40-S-18-TR	CSM-12	4MHz	±30ppm	Series	-40°C ~ 85°C
ECS-41-18-18-TR	CSM-12	4.096MHz	±30ppm	18pF	-40°C ~ 85°C
ECS-49-18-18-TR	CSM-12	4.9152MHz	±30ppm	18pF	-40°C ~ 85°C
ECS-49-20-18-TR	CSM-12	4.9152MHz	±30ppm	20pF	-40°C ~ 85°C
ECS-49-S-18-TR	CSM-12	4.9152MHz	±30ppm	Series	-40°C ~ 85°C
ECS-50-18-18-TR	CSM-12	5MHz	±30ppm	18pF	-40°C ~ 85°C
ECS-60-18-18-TR	CSM-12	6MHz	±30ppm	18pF	-40°C ~ 85°C
ECS-61-18-18-TR	CSM-12	6.144MHz	±30ppm	18pF	-40°C ~ 85°C
ECS-61-32-18-TR	CSM-12	6.144MHz	±30ppm	32pF	-40°C ~ 85°C
ECS-73-18-18-TR	CSM-12	7.3728MHz	±30ppm	18pF	-40°C ~ 85°C
ECS-73-20-18	CSM-12	7.3728MHz	±30ppm	20pF	-40°C ~ 85°C
ECS-73-S-18-TR	CSM-12	7.3728MHz	±30ppm	Series	-40°C ~ 85°C
ECS-80-18-18-TR	CSM-12	8MHz	±30ppm	18pF	-40°C ~ 85°C
ECS-80-20-18-TR	CSM-12	8MHz	±30ppm	20pF	-40°C ~ 85°C
ECS-80-S-18-TR	CSM-12	8MHz	±30ppm	Series	-40°C ~ 85°C
ECS-98.3-20-18-TR	CSM-12	9.8304MHz	±30ppm	20pF	-40°C ~ 85°C
ECS-98.3-S-18-TR	CSM-12	9.8304MHz	±30ppm	Series	-40°C ~ 85°C
