首頁歐美晶振 ECS晶振ECS-120-20-3X-EN-TR,SMD石英晶體,6G室內路由器晶振

ECS-120-20-3X-EN-TR,SMD石英晶體,6G室內路由器晶振

編號：48059261
頻率：12MHz
尺寸：7.6×4.1mm

美國ECS晶振.CSM-3X石英貼片晶振,進口無源晶振,ECS-120-20-3X-EN-TR晶振,頻率12MHz,負載20pF,工作溫度-40~85°C,頻率穩定性50ppm,小體積晶振,抗振動晶振,6G室內路由器晶振,DVD家電影音系統晶振,攝像頭晶振,數字電表晶...

分享到

ECS-120-20-3X-EN-TR,SMD石英晶體,6G室內路由器晶振,美國ECS晶振.CSM-3X石英貼片晶振,進口無源晶振,ECS-120-20-3X-EN-TR晶振,頻率12MHz,負載20pF,工作溫度-40~85°C,頻率穩定性50ppm,小體積晶振,抗振動晶振,6G室內路由器晶振,DVD家電影音系統晶振,攝像頭晶振,數字電表晶振.

ECS-120-20-3X-EN-TR,SMD石英晶體,6G室內路由器晶振特點：
•成本效益高
•低調
•擴展溫度范圍選項
•無鉛/符合RoHS標準

ECS-120-20-3X-EN-TR,SMD石英晶體,6G室內路由器晶振參數表

參數	條件	CSM-3X
頻率		12MHz
頻率公差	at +25°C	± 30PPM
頻率穩定性	-10°C to +70°C	± 50PPM
負載電容	Specify in P/N	20pF
激勵功率	DL	100 μW Max
工作溫度	Topr	-40°C to +85°C
保存溫度	Topr	-40°C to +85°C
并聯電容	Co	7.0 pF
老化	@ +25°C ±3°C	±5ppm

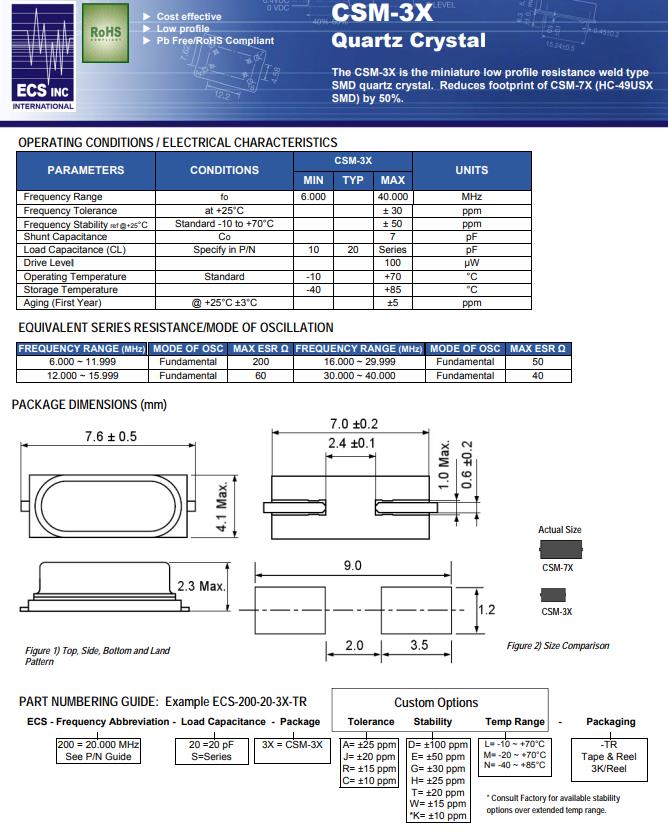

ECS-120-20-3X-EN-TR,SMD石英晶體,6G室內路由器晶振尺寸圖

ECS原廠編碼	型號	頻率	頻率偏差	負載電容	工作溫度	包裝
ECS-120-20-3X-EN-TR	CSM-3X	12MHz	±30ppm	20pF	-40°C ~ 85°C	HC49/US
ECS-120-20-3X-TR	CSM-3X	12MHz	±30ppm	20pF	-10°C ~ 70°C	HC49/US
ECS-122.8-20-3X-TR	CSM-3X	12.288MHz	±30ppm	20pF	-10°C ~ 70°C	HC49/US
ECS-130-20-3X-EN-TR	CSM-3X	13MHz	±30ppm	20pF	-40°C ~ 85°C	HC49/US
ECS-130-20-3X-TR	CSM-3X	13MHz	±30ppm	20pF	-10°C ~ 70°C	HC49/US
ECS-135.6-20-3X-EN-TR	CSM-3X	13.56MHz	±30ppm	20pF	-40°C ~ 85°C	HC49/US
ECS-135.6-20-3X-TR	CSM-3X	13.56MHz	±30ppm	20pF	-10°C ~ 70°C	HC49/US
ECS-143-20-3X-EN-TR	CSM-3X	14.31818MHz	±30ppm	20pF	-40°C ~ 85°C	HC49/US
ECS-143-20-3X-TR	CSM-3X	14.31818MHz	±30ppm	20pF	-10°C ~ 70°C	HC49/US
ECS-147.4-20-3X-EN-TR	CSM-3X	14.7456MHz	±30ppm	20pF	-40°C ~ 85°C	HC49/US
ECS-147.4-20-3X-TR	CSM-3X	14.7456MHz	±30ppm	20pF	-10°C ~ 70°C	HC49/US
ECS-160-20-3X-EN-TR	CSM-3X	16MHz	±30ppm	20pF	-40°C ~ 85°C	HC49/US
ECS-160-20-3X-TR	CSM-3X	16MHz	±30ppm	20pF	-10°C ~ 70°C	HC49/US
ECS-184-20-3X-EN-TR	CSM-3X	18.432MHz	±30ppm	20pF	-40°C ~ 85°C	HC49/US
ECS-184-20-3X-TR	CSM-3X	18.432MHz	±30ppm	20pF	-10°C ~ 70°C	HC49/US
ECS-196.6-20-3X-EN-TR	CSM-3X	19.6608MHz	±30ppm	20pF	-40°C ~ 85°C	HC49/US
ECS-196.6-20-3X-TR	CSM-3X	19.6608MHz	±30ppm	20pF	-10°C ~ 70°C	HC49/US
ECS-200-20-3X-EN-TR	CSM-3X	20MHz	±30ppm	20pF	-40°C ~ 85°C	HC49/US
ECS-200-20-3X-TR	CSM-3X	20MHz	±30ppm	20pF	-10°C ~ 70°C	HC49/US
ECS-200-CDX-0914	CSM-3X	20MHz	±10ppm	10pF	-60°C ~ 105°C	HC49/US
ECS-245.7-20-3X-EN-TR	CSM-3X	24.576MHz	±30ppm	20pF	-40°C ~ 85°C	HC49/US
ECS-245.7-20-3X-TR	CSM-3X	24.576MHz	±30ppm	20pF	-10°C ~ 70°C	HC49/US
ECS-250-20-3X-EN-TR	CSM-3X	25MHz	±30ppm	20pF	-40°C ~ 85°C	HC49/US
ECS-250-20-3X-TR	CSM-3X	25MHz	±30ppm	20pF	-10°C ~ 70°C	Nonstandard SMD
ECS-270-20-3X-EN-TR	CSM-3X	27MHz	±30ppm	20pF	-40°C ~ 85°C	HC49/US
ECS-270-20-3X-TR	CSM-3X	27MHz	±30ppm	20pF	-10°C ~ 70°C	HC49/US
ECS-286.3-20-3X-EN-TR	CSM-3X	28.63636MHz	±30ppm	20pF	-40°C ~ 85°C	HC49/US
ECS-286.3-20-3X-TR	CSM-3X	28.63636MHz	±30ppm	20pF	-10°C ~ 70°C	HC49/US
ECS-300-20-3X-EN-TR	CSM-3X	30MHz	±30ppm	20pF	-40°C ~ 85°C	HC49/US
ECS-300-20-3X-TR	CSM-3X	30MHz	±30ppm	20pF	-10°C ~ 70°C	HC49/US
ECS-330-20-3X-EN-TR	CSM-3X	33MHz	±30ppm	20pF	-40°C ~ 85°C	HC49/US
ECS-330-20-3X-TR	CSM-3X	33MHz	±30ppm	20pF	-10°C ~ 70°C	HC49/US
ECS-400-20-3X-EN-TR	CSM-3X	40MHz	±30ppm	20pF	-40°C ~ 85°C	HC49/US
ECS-400-20-3X-TR	CSM-3X	40MHz	±30ppm	20pF	-10°C ~ 70°C	HC49/US
