首頁歐美晶振 ECS晶振ECS晶振,ECS-13.5-20-20BM-TR,6G以太網晶振

ECS晶振,ECS-13.5-20-20BM-TR,6G以太網晶振

編號：92048540
頻率：13.5MHz
尺寸：7.0×5.0mm

美國ECS晶振,CSM-8M進口晶振,ECS-13.5-20-20BM-TR晶振,四腳貼片晶振,無源晶振,7050mm晶振,頻率13.5MHz,負載20pF,工作溫度-20~70°C,頻率穩定性30ppm,高品質晶振,低老化晶振,6G以太網晶振,電信交換機晶振,服務器與存儲...

分享到

ECS晶振,ECS-13.5-20-20BM-TR,6G以太網晶振,美國ECS晶振,CSM-8M進口晶振,ECS-13.5-20-20BM-TR晶振,四腳貼片晶振,無源晶振,7050mm晶振,頻率13.5MHz,負載20pF,工作溫度-20~70°C,頻率穩定性30ppm,高品質晶振,低老化晶振,6G以太網晶振,電信交換機晶振,服務器與存儲系統晶振,測試與測量設備晶振.

ECS晶振,ECS-13.5-20-20BM-TR,6G以太網晶振特點：

•微型貼片晶體7.0 x 5.0mm
•是接縫焊接的金屬蓋子/陶瓷封裝晶體
•PCMIA以太網應用的理想選擇
•無鉛/符合RoHS標準

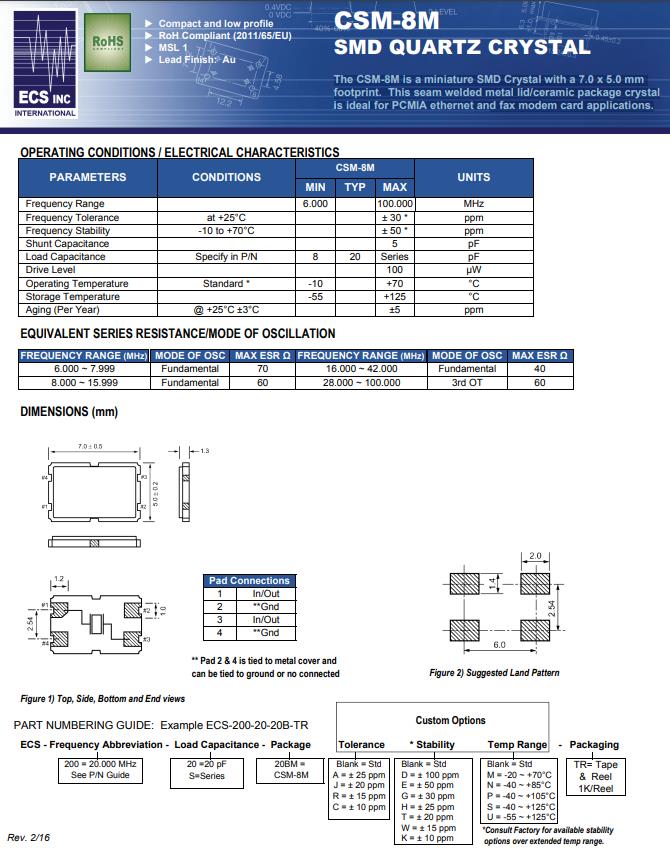

ECS晶振,ECS-13.5-20-20BM-TR,6G以太網晶振參數表

參數	條件	CSM-8M
頻率		13.5MHz
頻率公差	at +25°C	± 30PPM
頻率穩定性	-10°C to +70°C	± 50PPM
負載電容	Specify in P/N	20pF
激勵功率	DL	100 μW Max
工作溫度	Topr	-20°C to +70°C
保存溫度	Topr	-55°C to +125°C
并聯電容	Co	5.0 pF
老化	@ +25°C ±3°C	±5ppm

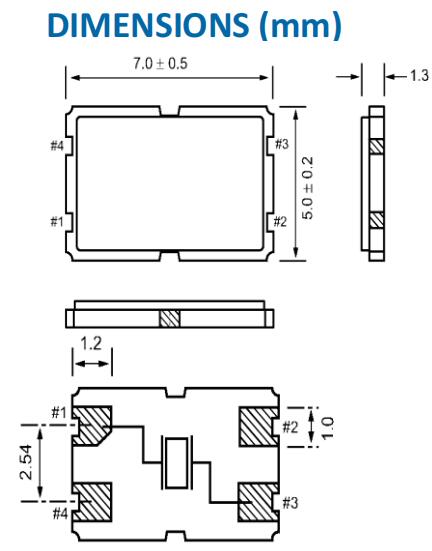

ECS晶振,ECS-13.5-20-20BM-TR,6G以太網晶振尺寸圖

ECS原廠編碼	型號	頻率	頻率偏差	負載電容	工作溫度
ECS-120-20-20BM-TR	CSM-8M	12MHz	±30ppm	20pF	-10°C ~ 70°C
ECS-13.5-20-20BM-TR	CSM-8M	13.5MHz	±30ppm	20pF	-10°C ~ 70°C
ECS-240-20-20BM-TR	CSM-8M	24MHz	±30ppm	20pF	-10°C ~ 70°C
ECS-160-20-20BM-TR	CSM-8M	16MHz	±30ppm	20pF	-10°C ~ 70°C
ECS-180-20-20BM-TR	CSM-8M	18MHz	±30ppm	20pF	-10°C ~ 70°C
ECS-190-20-20BM-TR	CSM-8M	19MHz	±30ppm	20pF	-10°C ~ 70°C
ECS-200-20-20BM-TR	CSM-8M	20MHz	±30ppm	20pF	-10°C ~ 70°C
ECS-210-20-20BM-TR	CSM-8M	21MHz	±30ppm	20pF	-10°C ~ 70°C
ECS-220-20-20BM-TR	CSM-8M	22MHz	±30ppm	20pF	-10°C ~ 70°C
ECS-230-20-20BM-TR	CSM-8M	23MHz	±30ppm	20pF	-10°C ~ 70°C
ECS-240-20-20BM-TR	CSM-8M	24MHz	±30ppm	20pF	-10°C ~ 70°C
ECS-250-20-20BM-TR	CSM-8M	25MHz	±30ppm	20pF	-10°C ~ 70°C
ECS-270-20-20BM-TR	CSM-8M	27MHz	±30ppm	20pF	-10°C ~ 70°C
ECS-280-20-20BM-TR	CSM-8M	28MHz	±30ppm	20pF	-10°C ~ 70°C
ECS-290-20-20BM-TR	CSM-8M	29MHz	±30ppm	20pF	-10°C ~ 70°C
ECS-330-20-20BM-TR	CSM-8M	33MHz	±30ppm	20pF	-10°C ~ 70°C
ECS-300-20-20BM-TR	CSM-8M	30MHz	±30ppm	20pF	-10°C ~ 70°C
ECS-320-20-20BM-TR	CSM-8M	32MHz	±30ppm	20pF	-10°C ~ 70°C
ECS-480-20-20BM-TR	CSM-8M	48MHz	±30ppm	20pF	-10°C ~ 70°C
ECS-38.4-20-20BM-TR	CSM-8M	38.4MHz	±30ppm	20pF	-10°C ~ 70°C
ECS-19.68-20-20BM-TR	CSM-8M	19.68MHz	±30ppm	20pF	-10°C ~ 70°C
ECS-40.32-20-20BM-TR	CSM-8M	40.32MHz	±30ppm	20pF	-10°C ~ 70°C
ECS-440-20-20BM-TR	CSM-8M	44MHz	±30ppm	20pF	-10°C ~ 70°C
ECS-400-20-20BM-TR	CSM-8M	40MHz	±30ppm	20pF	-10°C ~ 70°C
ECS-61.5-20-20BM-TR	CSM-8M	61.5MHz	±30ppm	20pF	-10°C ~ 70°C
ECS-98.3-20-20BM-TR	CSM-8M	98.3MHz	±30ppm	20pF	-10°C ~ 70°C
