- 編號：37934331
- 頻率：32.768KHz

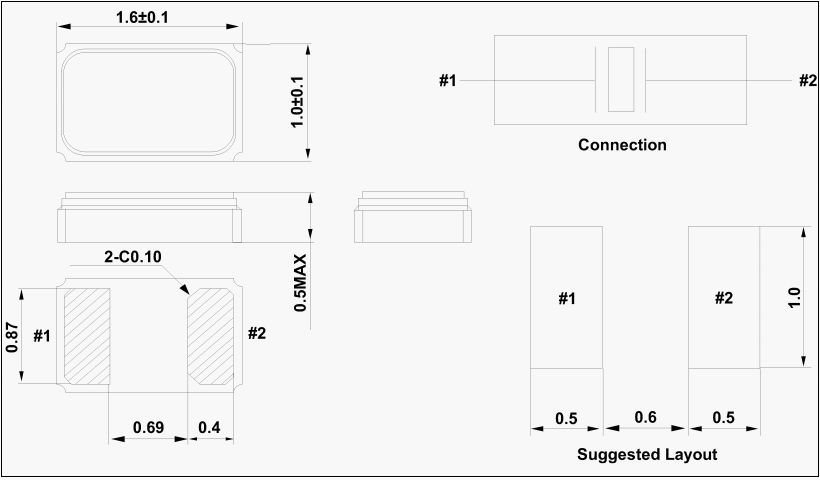

- 尺寸：1610mm

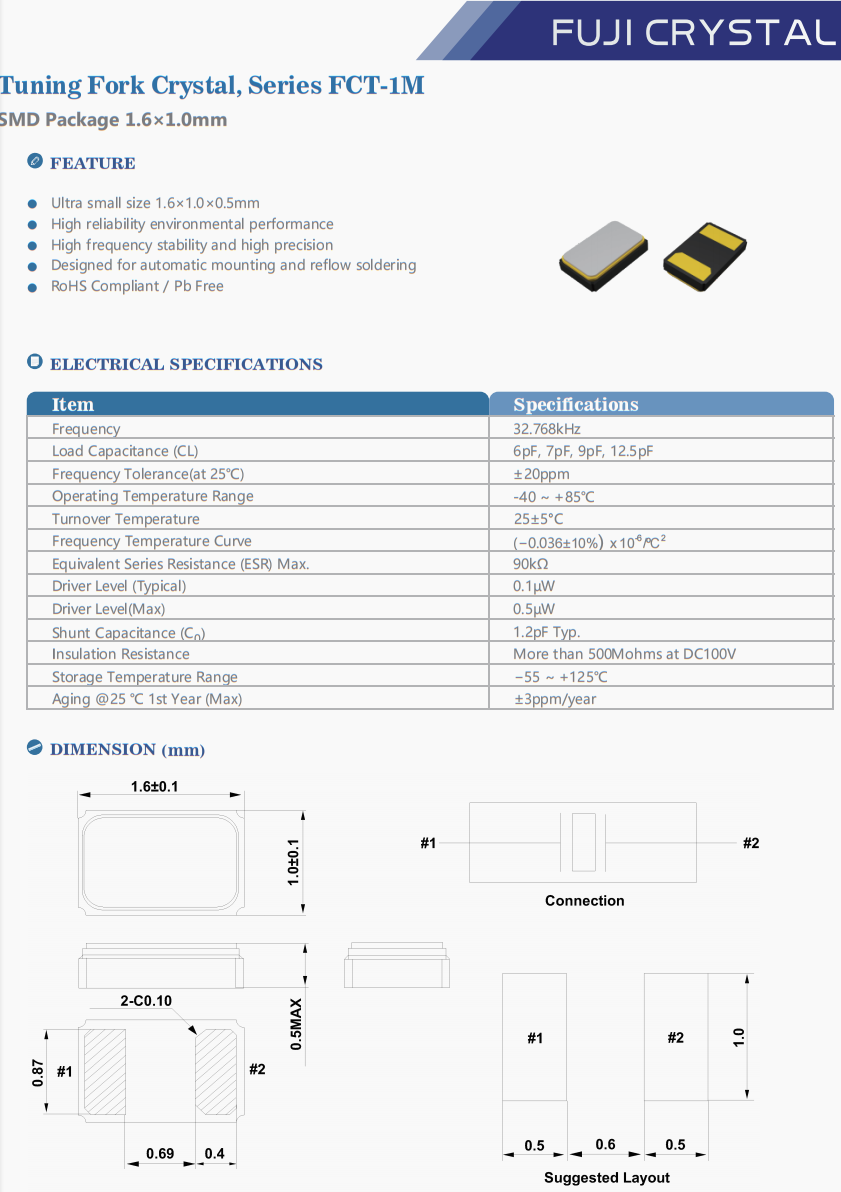

領先同行的電車充電槍晶振,Fuji晶振,FCT1M03276809E3晶振
領先同行的電車充電槍晶振,Fuji晶振,FCT1M03276809E3晶振，日本Fujicom晶振公司，富士晶振，高精度晶振，進口晶振，超小型晶振，1610晶振，石英晶振，二腳晶振，無源晶振，音叉晶體，KHz晶振，貼片晶振，6G信號接收器...
.jpg)
領先同行的電車充電槍晶振,Fuji晶振,FCT1M03276809E3晶振，日本Fujicom晶振公司，富士晶振，高精度晶振，進口晶振，超小型晶振，1610晶振，石英晶振，二腳晶振，無源晶振，音叉晶體，KHz晶振，貼片晶振，6G信號接收器晶振，6G網絡晶振，高品質晶振，FCT-1M晶振，超小尺寸1.6×1.0×0.5mm，高可靠性環保性能，高頻穩定性好，精度高，設計用于自動安裝和回流焊，符合RoHS標準/無鉛
.gif)
領先同行的電車充電槍晶振,Fuji晶振,FCT1M03276809E3晶振
.gif)
領先同行的電車充電槍晶振,Fuji晶振,FCT1M03276809E3晶振
.gif)
| 項目 | 技術規格 | |
| 頻率 | 32.768kHz | |
| 負載電容 | 6pF, 7pF, 9pF, 12.5pF | |
| 頻率容差 | ±20ppm | |
| 工作溫度 | -40 ~ +85℃ | |
| 周轉溫度 | 25±5°C | |
| 頻率溫度曲線 | (−0.036± 10%) x 10-6/ºC2 | |
| 等效串聯電阻最大值 | 90kΩ | |
| 驅動電平（標準） | 0.1µW | |
| 驅動電平（最大） | 0.5µW | |
| 分流電容 | 1.2pF Typ. | |
| 絕緣電阻 | More than 500Mohms at DC100V | |
| 儲存溫度 | − 55 ~ +125℃ | |
| 老化 | ±3ppm/year | |
領先同行的電車充電槍晶振,Fuji晶振,FCT1M03276809E3晶振
| 原廠編碼 | 生產商 | 型號 | 頻率 | 負載電容 | 工作溫度 |
| FCT1M03276806E3 | Fuji晶振 | FCT-1M | 32.768 kHz | 6pF | -20°C ~ 70°C |
| FCT1M032768C5W1 | Fuji晶振 | FCT-1M | 32.768 kHz | 12.5pF | 0°C ~ 70°C |
| FCT1M032768C5E1 | Fuji晶振 | FCT-1M | 32.768 kHz | 12.5pF | -20°C ~ 70°C |
| FCT1M03276806E5 | Fuji晶振 | FCT-1M | 32.768 kHz | 6pF | -20°C ~ 70°C |
| FCT1M03276807W3 | Fuji晶振 | FCT-1M | 32.768 kHz | 7pF | 0°C ~ 70°C |
| FCT1M03276807P3 | Fuji晶振 | FCT-1M | 32.768 kHz | 7pF | -10°C ~ 60°C |
| FCT1M03276807I6 | Fuji晶振 | FCT-1M | 32.768 kHz | 7pF | -40°C ~ 125°C |
| FCT1M03276806U3 | Fuji晶振 | FCT-1M | 32.768 kHz | 6pF | -40°C ~ 105°C |
| FCT1M03276807P1 | Fuji晶振 | FCT-1M | 32.768 kHz | 7pF | -10°C ~ 60°C |
| FCT1M03276807Y1 | Fuji晶振 | FCT-1M | 32.768 kHz | 7pF | -40°C ~ 85°C |
| FCT1M03276806U5 | Fuji晶振 | FCT-1M | 32.768 kHz | 6pF | -40°C ~ 105°C |
| FCT1M03276807R1 | Fuji晶振 | FCT-1M | 32.768 kHz | 7pF | -30°C ~ 70°C |
| FCT1M03276809D1 | Fuji晶振 | FCT-1M | 32.768 kHz | 9pF | -10°C ~ 70°C |
| FCT1M03276807P5 | Fuji晶振 | FCT-1M | 32.768 kHz | 7pF | -10°C ~ 60°C |
| FCT1M03276806U6 | Fuji晶振 | FCT-1M | 32.768 kHz | 6pF | -40°C ~ 105°C |
| FCT1M03276806T3 | Fuji晶振 | FCT-1M | 32.768 kHz | 6pF | -30°C ~ 85°C |
| FCT1M03276809S5 | Fuji晶振 | FCT-1M | 32.768 kHz | 9pF | -20°C ~ 75°C |
| FCT1M032768C5U6 | Fuji晶振 | FCT-1M | 32.768 kHz | 12.5pF | -40°C ~ 105°C |
| FCT1M032768C5U9 | Fuji晶振 | FCT-1M | 32.768 kHz | 12.5pF | -40°C ~ 105°C |
| FCT1M032768C5I6 | Fuji晶振 | FCT-1M | 32.768 kHz | 12.5pF | -40°C ~ 125°C |
| FCT1M03276806D1 | Fuji晶振 | FCT-1M | 32.768 kHz | 6pF | -10°C ~ 70°C |
| FCT1M03276809S3 | Fuji晶振 | FCT-1M | 32.768 kHz | 9pF | -20°C ~ 75°C |
| FCT1M03276806E1 | Fuji晶振 | FCT-1M | 32.768 kHz | 6pF | -20°C ~ 70°C |
| FCT1M03276807Y5 | Fuji晶振 | FCT-1M | 32.768 kHz | 7pF | -40°C ~ 85°C |
| FCT1M032768C5D5 | Fuji晶振 | FCT-1M | 32.768 kHz | 12.5pF | -10°C ~ 70°C |
| FCT1M032768C5I5 | Fuji晶振 | FCT-1M | 32.768 kHz | 12.5pF | -40°C ~ 125°C |
| FCT1M03276807I9 | Fuji晶振 | FCT-1M | 32.768 kHz | 7pF | -40°C ~ 125°C |
| FCT1M03276807Y3 | Fuji晶振 | FCT-1M | 32.768 kHz | 7pF | -40°C ~ 85°C |
| FCT1M03276807W5 | Fuji晶振 | FCT-1M | 32.768 kHz | 7pF | 0°C ~ 70°C |
| FCT1M032768C5U5 | Fuji晶振 | FCT-1M | 32.768 kHz | 12.5pF | -40°C ~ 105°C |
| FCT1M03276809S1 | Fuji晶振 | FCT-1M | 32.768 kHz | 9pF | -20°C ~ 75°C |
| FCT1M03276806I5 | Fuji晶振 | FCT-1M | 32.768 kHz | 6pF | -40°C ~ 125°C |
| FCT1M032768C5U3 | Fuji晶振 | FCT-1M | 32.768 kHz | 12.5pF | -40°C ~ 105°C |
| FCT1M03276806D5 | Fuji晶振 | FCT-1M | 32.768 kHz | 6pF | -10°C ~ 70°C |
| FCT1M03276809T1 | Fuji晶振 | FCT-1M | 32.768 kHz | 9pF | -30°C ~ 85°C |
| FCT1M032768C5E3 | Fuji晶振 | FCT-1M | 32.768 kHz | 12.5pF | -20°C ~ 70°C |
| FCT1M03276806D3 | Fuji晶振 | FCT-1M | 32.768 kHz | 6pF | -10°C ~ 70°C |
| FCT1M03276806T5 | Fuji晶振 | FCT-1M | 32.768 kHz | 6pF | -30°C ~ 85°C |
| FCT1M03276809R5 | Fuji晶振 | FCT-1M | 32.768 kHz | 9pF | -30°C ~ 70°C |
| FCT1M032768C5E5 | Fuji晶振 | FCT-1M | 32.768 kHz | 12.5pF | -20°C ~ 70°C |
| FCT1M03276807I5 | Fuji晶振 | FCT-1M | 32.768 kHz | 7pF | -40°C ~ 125°C |
| FCT1M032768C5D1 | Fuji晶振 | FCT-1M | 32.768 kHz | 12.5pF | -10°C ~ 70°C |
| FCT1M03276809W5 | Fuji晶振 | FCT-1M | 32.768 kHz | 9pF | 0°C ~ 70°C |
| FCT1M03276806I9 | Fuji晶振 | FCT-1M | 32.768 kHz | 6pF | -40°C ~ 125°C |
| FCT1M03276809E1 | Fuji晶振 | FCT-1M | 32.768 kHz | 9pF | -20°C ~ 70°C |
| FCT1M03276806W1 | Fuji晶振 | FCT-1M | 32.768 kHz | 6pF | 0°C ~ 70°C |
| FCT1M03276806S3 | Fuji晶振 | FCT-1M | 32.768 kHz | 6pF | -20°C ~ 75°C |
| FCT1M03276809P5 | Fuji晶振 | FCT-1M | 32.768 kHz | 9pF | -10°C ~ 60°C |
| FCT1M03276807D3 | Fuji晶振 | FCT-1M | 32.768 kHz | 7pF | -10°C ~ 70°C |
| FCT1M03276809E3 | Fuji晶振 | FCT-1M | 32.768 kHz | 9pF | -20°C ~ 70°C |
| FCT1M032768C5Y3 | Fuji晶振 | FCT-1M | 32.768 kHz | 12.5pF | -40°C ~ 85°C |
| FCT1M03276809R1 | Fuji晶振 | FCT-1M | 32.768 kHz | 9pF | -30°C ~ 70°C |
| FCT1M032768C5P1 | Fuji晶振 | FCT-1M | 32.768 kHz | 12.5pF | -10°C ~ 60°C |
| FCT1M03276809D3 | Fuji晶振 | FCT-1M | 32.768 kHz | 9pF | -10°C ~ 70°C |
| FCT1M03276809T3 | Fuji晶振 | FCT-1M | 32.768 kHz | 9pF | -30°C ~ 85°C |
| FCT1M03276806I6 | Fuji晶振 | FCT-1M | 32.768 kHz | 6pF | -40°C ~ 125°C |
| FCT1M03276806P5 | Fuji晶振 | FCT-1M | 32.768 kHz | 6pF | -10°C ~ 60°C |
| FCT1M03276806W5 | Fuji晶振 | FCT-1M | 32.768 kHz | 6pF | 0°C ~ 70°C |
| FCT1M03276809U9 | Fuji晶振 | FCT-1M | 32.768 kHz | 9pF | -40°C ~ 105°C |
| FCT1M03276809Y5 | Fuji晶振 | FCT-1M | 32.768 kHz | 9pF | -40°C ~ 85°C |
| FCT1M03276809P1 | Fuji晶振 | FCT-1M | 32.768 kHz | 9pF | -10°C ~ 60°C |
| FCT1M03276806S5 | Fuji晶振 | FCT-1M | 32.768 kHz | 6pF | -20°C ~ 75°C |
| FCT1M032768C5S1 | Fuji晶振 | FCT-1M | 32.768 kHz | 12.5pF | -20°C ~ 75°C |
| FCT1M032768C5S3 | Fuji晶振 | FCT-1M | 32.768 kHz | 12.5pF | -20°C ~ 75°C |
| FCT1M03276807T5 | Fuji晶振 | FCT-1M | 32.768 kHz | 7pF | -30°C ~ 85°C |
| FCT1M032768C5R1 | Fuji晶振 | FCT-1M | 32.768 kHz | 12.5pF | -30°C ~ 70°C |
| FCT1M03276806W3 | Fuji晶振 | FCT-1M | 32.768 kHz | 6pF | 0°C ~ 70°C |
| FCT1M03276809U3 | Fuji晶振 | FCT-1M | 32.768 kHz | 9pF | -40°C ~ 105°C |
| FCT1M032768C5P3 | Fuji晶振 | FCT-1M | 32.768 kHz | 12.5pF | -10°C ~ 60°C |
| FCT1M03276807S5 | Fuji晶振 | FCT-1M | 32.768 kHz | 7pF | -20°C ~ 75°C |
| FCT1M032768C5T1 | Fuji晶振 | FCT-1M | 32.768 kHz | 12.5pF | -30°C ~ 85°C |
| FCT1M03276806S1 | Fuji晶振 | FCT-1M | 32.768 kHz | 6pF | -20°C ~ 75°C |
| FCT1M03276806R1 | Fuji晶振 | FCT-1M | 32.768 kHz | 6pF | -30°C ~ 70°C |
| FCT1M03276807U3 | Fuji晶振 | FCT-1M | 32.768 kHz | 7pF | -40°C ~ 105°C |
| FCT1M03276806P3 | Fuji晶振 | FCT-1M | 32.768 kHz | 6pF | -10°C ~ 60°C |
| FCT1M032768C5R5 | Fuji晶振 | FCT-1M | 32.768 kHz | 12.5pF | -30°C ~ 70°C |
| FCT1M03276809Y3 | Fuji晶振 | FCT-1M | 32.768 kHz | 9pF | -40°C ~ 85°C |
| FCT1M03276806U9 | Fuji晶振 | FCT-1M | 32.768 kHz | 6pF | -40°C ~ 105°C |
| FCT1M03276807U5 | Fuji晶振 | FCT-1M | 32.768 kHz | 7pF | -40°C ~ 105°C |
| FCT1M03276806P1 | Fuji晶振 | FCT-1M | 32.768 kHz | 6pF | -10°C ~ 60°C |
| FCT1M03276807E1 | Fuji晶振 | FCT-1M | 32.768 kHz | 7pF | -20°C ~ 70°C |
| FCT1M03276807W1 | Fuji晶振 | FCT-1M | 32.768 kHz | 7pF | 0°C ~ 70°C |
| FCT1M03276806R5 | Fuji晶振 | FCT-1M | 32.768 kHz | 6pF | -30°C ~ 70°C |
| FCT1M03276807R5 | Fuji晶振 | FCT-1M | 32.768 kHz | 7pF | -30°C ~ 70°C |
| FCT1M032768C5Y1 | Fuji晶振 | FCT-1M | 32.768 kHz | 12.5pF | -40°C ~ 85°C |
| FCT1M03276807T3 | Fuji晶振 | FCT-1M | 32.768 kHz | 7pF | -30°C ~ 85°C |
| FCT1M032768C5R3 | Fuji晶振 | FCT-1M | 32.768 kHz | 12.5pF | -30°C ~ 70°C |
| FCT1M03276809U5 | Fuji晶振 | FCT-1M | 32.768 kHz | 9pF | -40°C ~ 105°C |
