首頁進口晶振 NDK晶振NDK汽車電子晶振,NX3225GA-16.9344M-STD-CRG-2,16.9344MHz,3225mm,±30ppm

NDK汽車電子晶振,NX3225GA-16.9344M-STD-CRG-2,16.9344MHz,3225mm,±30ppm

編號：10175564
頻率：16.9344MHz
尺寸：3.2x2.5mm

NDK汽車電子晶振,NX3225GA-16.9344M-STD-CRG-2,16.9344MHz,3225mm,30ppm，日本進口晶振，NDK晶振型號NX3225GA，編碼為：NX3225GA-16.9344M-STD-CRG-2，是一款小體積晶振尺寸3.2x2.5x0.75mm陶瓷封裝，四腳貼片晶振，石...

分享到

NDK汽車電子晶振,NX3225GA-16.9344M-STD-CRG-2,16.9344MHz,3225mm,±30ppm，日本進口晶振，NDK晶振型號NX3225GA，編碼為：NX3225GA-16.9344M-STD-CRG-2，是一款小體積晶振尺寸3.2x2.5x0.75mm陶瓷封裝，四腳貼片晶振，石英晶體諧振器，無源晶振，石英晶振，無鉛環保晶振，頻率為16.9344MHz，工作溫度范圍：-40℃至+150℃。在極端惡劣的環境條件下也能具有穩定的啟動特性，優異的抗環境性能，如耐熱、振動和抗沖擊性，回流溫度分布（可用于無鉛焊接），符合AEC-Q200，超小型，輕薄型，特別適用于：汽車電子晶振，車載控制器，汽車音影晶振，汽車氛圍燈控制器，汽車充電樁，汽車電子控制板，汽車大燈恒溫器，無線網絡，藍牙模塊，移動通訊設備，數碼電子等應用。

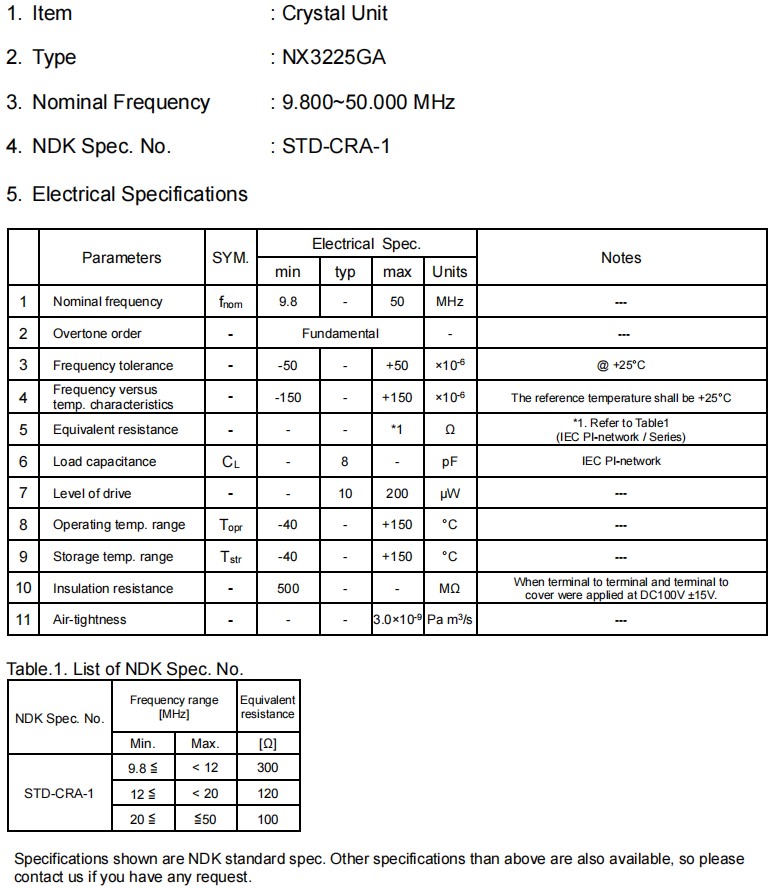

NDK汽車電子晶振,NX3225GA-16.9344M-STD-CRG-2,16.9344MHz,3225mm,±30ppm 參數表

項目	NX3225GA
標稱頻率	9.840 to 50 MHz
序曲順序	Fundamental
頻率公差（25±3°C）	±20 × 10−6
頻率與溫度特性（參考+25°C）	±30 × 10−6
工作溫度范圍	−40 to +85 °C
儲存溫度范圍	−40 to +85 °C
等效串聯電阻	Refer to *1
驅動級別	10 μW (Max. 200 μW)
負載電容	8pF
規格編號	STD-CRG-2

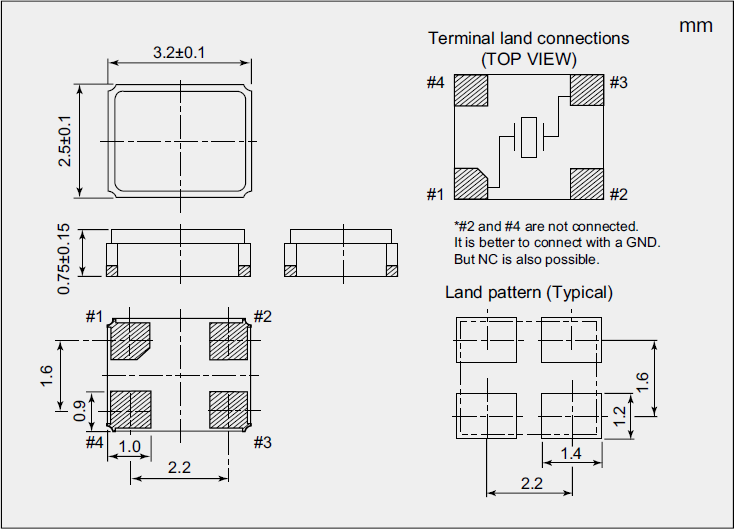

NDK汽車電子晶振,NX3225GA-16.9344M-STD-CRG-2,16.9344MHz,3225mm,±30ppm 尺寸圖

NDK汽車電子晶振,NX3225GA-16.9344M-STD-CRG-2,16.9344MHz,3225mm,±30ppm

NX3225GA晶振特點：

緊湊的表面安裝晶體單元，適用于汽車應用

緊湊和薄(Typ：3.2×2.5×0.75mm)

即使在極端惡劣的環境條件下也能具有穩定的啟動特性

優異的抗環境性能，如耐熱、振動和抗沖擊性

回流溫度分布（可用于無鉛焊接）

符合AEC-Q200標準

貼片石英晶振	品牌	型號	頻率	頻率穩定度	包裝/封裝
NX3225GA-26.000M-STD-CRG-2	NDK晶振	NX3225GA	26MHz	±30ppm	4-SMD, No Lead
NX3225GA-26MHZ-TI	NDK晶振	NX3225GA	26MHz	±40ppm	4-SMD, No Lead
NX3225GA-16.000M-STD-CRG-2	NDK晶振	NX3225GA	16MHz	±30ppm	4-SMD, No Lead
NX3225GA-27.000M-STD-CRG-1	NDK晶振	NX3225GA	27MHz	±30ppm	4-SMD, No Lead
NX3225GA-20.000M-STD-CRG-1	NDK晶振	NX3225GA	20MHz	±30ppm	4-SMD, No Lead
NX3225GA-24.576M-STD-CRG-2	NDK晶振	NX3225GA	24.576MHz	±30ppm	4-SMD, No Lead
NX3225GA-26.000M-STD-CRG-1	NDK晶振	NX3225GA	26MHz	±30ppm	4-SMD, No Lead
NX3225GA-14.31818M-STD-CRG-2	NDK晶振	NX3225GA	14.31818MHz	±30ppm	4-SMD, No Lead
NX3225GA-32M-EXS00A-CG02611	NDK晶振	NX3225GA	32MHz	±20ppm	4-SMD, No Lead
NX3225GA-20.000M-STD-CRG-2	NDK晶振	NX3225GA	20MHz	±30ppm	4-SMD, No Lead
NX3225GA-14.7456M-STD-CRG-1	NDK晶振	NX3225GA	14.7456MHz	±30ppm	4-SMD, No Lead
NX3225GA-27M-STD-CRG-2	NDK晶振	NX3225GA	27MHz	±30ppm	4-SMD, No Lead
NX3225GA-20MHZ-STD-CRA-1	NDK晶振	NX3225GA	20MHz	±150ppm	4-SMD, No Lead
NX3225GA-19.2M-STD-CRG-2	NDK晶振	NX3225GA	19.2MHz	±30ppm	4-SMD, No Lead
NX3225GA-16.9344M-STD-CRG-2	NDK晶振	NX3225GA	16.9344MHz	±30ppm	4-SMD, No Lead
NX3225GA-10.000M-STD-CRG-2	NDK晶振	NX3225GA	10MHz	±30ppm	4-SMD, No Lead
NX3225GA-12MHZ- STD-CRG-2	NDK晶振	NX3225GA	12MHz	±30ppm	4-SMD, No Lead
NX3225GA-12.000M-STD-CRA-1	NDK晶振	NX3225GA	12MHz	±150ppm	4-SMD, No Lead
NX3225GA-12.288M-STD-CRG-2	NDK晶振	NX3225GA	12.288MHz	±30ppm	4-SMD, No Lead
NX3225GA-13.56M-STD-CRG-2	NDK晶振	NX3225GA	13.56MHz	±30ppm	4-SMD, No Lead
NX3225GA-14.7456M-STD-CRG-2	NDK晶振	NX3225GA	14.7456MHz	±30ppm	4-SMD, No Lead
NX3225GA-27.12M-STD-CRG-2	NDK晶振	NX3225GA	27.12MHz	±30ppm	4-SMD, No Lead
NX3225GA-25.000M-STD-CRG-1	NDK晶振	NX3225GA	25MHz	±30ppm	4-SMD, No Lead
NX3225GA-25.000M-STD-CRG-2	NDK晶振	NX3225GA	25MHz	±30ppm	4-SMD, No Lead
NX3225GA-16.000M-STD-CRG-1	NDK晶振	NX3225GA	16MHz	±30ppm	4-SMD, No Lead
NX3225GA-12MHZ- STD-CRG-1	NDK晶振	NX3225GA	12MHz	±30ppm	4-SMD, No Lead
NX3225GA-14.31818M-STD-CRG-1	NDK晶振	NX3225GA	14.31818MHz	±30ppm	4-SMD, No Lead
NX3225GA-10.000M-STD-CRG-1	NDK晶振	NX3225GA	10MHz	±30ppm	4-SMD, No Lead
NX3225GA-30.000M-STD-CRG-1	NDK晶振	NX3225GA	30MHz	±30ppm	4-SMD, No Lead
NX3225GA-30.000M-STD-CRG-2	NDK晶振	NX3225GA	30MHz	±30ppm	4-SMD, No Lead
