Skyworks歐美晶體,6G路由器晶振,530FC125M000DG六腳晶振

編號：71411933
頻率：125MHz

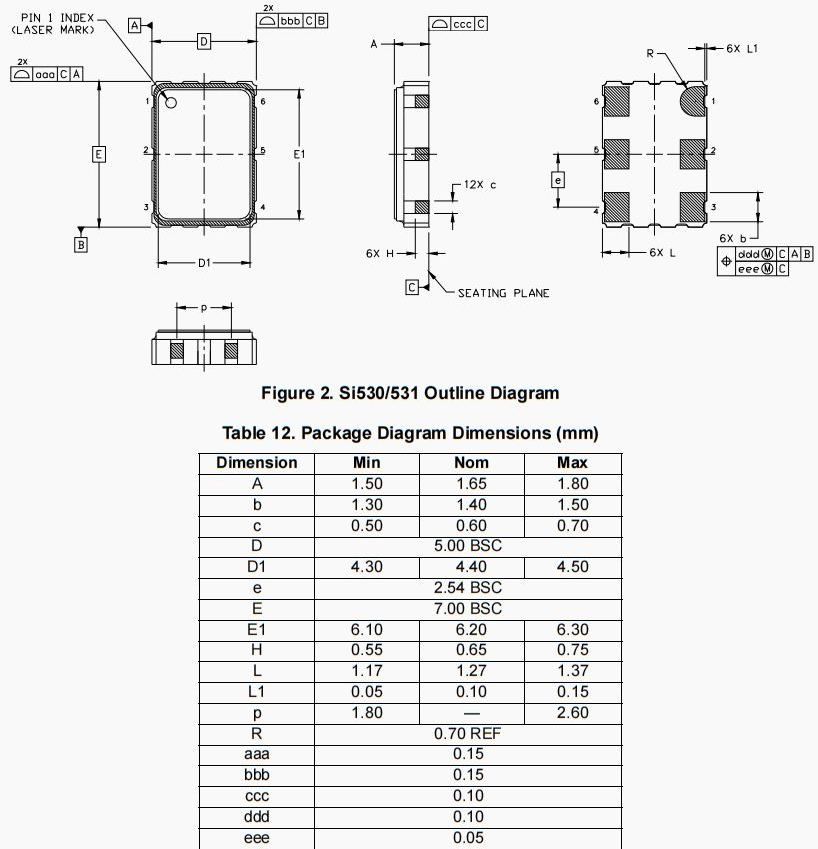

尺寸：7050mm

Skyworks歐美晶體,6G路由器晶振,530FC125M000DG六腳晶振，美國Skyworks晶振公司，高品質進口晶振，歐美晶振，有源晶振,貼片石英晶體振蕩器,貼片晶振，7050晶振，六腳晶振，小體積晶振，差分晶振，LVDS晶振，530FC125M...

分享到

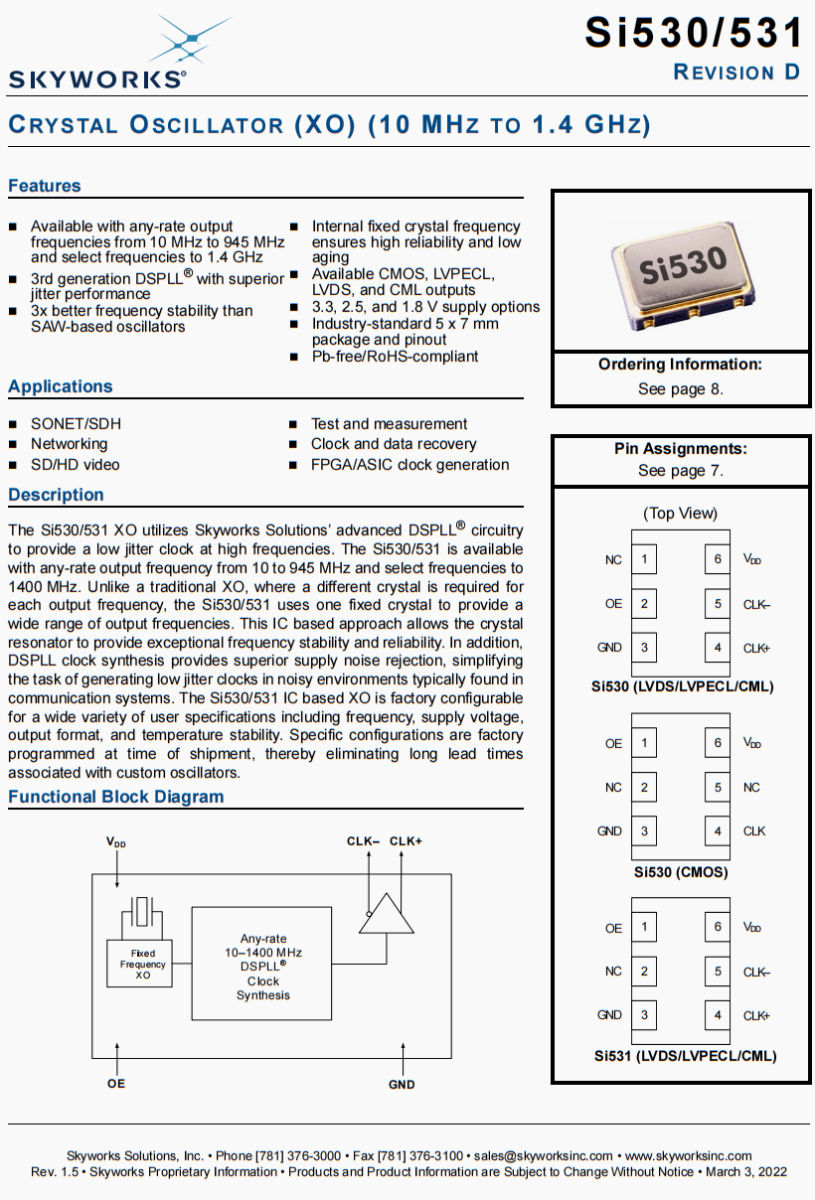

Skyworks歐美晶體,6G路由器晶振,530FC125M000DG六腳晶振，美國Skyworks晶振公司，高品質進口晶振，歐美晶振，有源晶振,貼片石英晶體振蕩器,貼片晶振，7050晶振，六腳晶振，小體積晶振，差分晶振，LVDS晶振，530FC125M000DG晶振，石英晶振，金屬面晶振，可提供10 MHz至945 MHz的任意速率輸出頻率，并可選擇頻率至1.4 GHz的第三代DSPLL®，具有卓越的抖動性能，頻率穩定性比基于saw的振蕩器高3倍。內部固定晶體頻率確保高可靠性和低老化。可提供CMOS, LVPECL, LVDS和CML輸出3.3,2.5和1.8 V電源選項，行業標準5 x 7 mm封裝和引腳無pb / rohs兼容

Skyworks歐美晶體,6G路由器晶振,530FC125M000DG六腳晶振

參數	標志	條件	最小值	典型的	最大值	單位
電源電壓	VDD	3.3 V option	2.97	3.3	3.63	V
		2.5 V option	2.25	2.5	2.75	V
		1.8 V option	1.71	1.8	1.89	V
供應電流	IDD	Output enabled LVPECL CML LVDS CMOS	— — — —	111 99 90 81	121 108 98 88	mA
供應電流	IDD	Tristate mode	—	60	75	mA
輸出啟用(OE)2		VIH	0.75 x VDD	—	—	V
輸出啟用(OE)2		VIL	—	—	0.5	V
工作溫度范圍	TA		–40	—	85	ºC
標稱頻率	fO	LVPECL/LVDS/CML	10	—	945	MHz
標稱頻率	fO	CMOS	10	—	160	MHz
最初的準確性	fi	Measured at +25 °C at time of shipping	—	±1.5	—	ppm
溫度穩定度			–7 –20 –50	— — —	+7 +20 +50	ppm
老化	fa	Frequency drift over first year	—	—	±3	ppm
老化	fa	Frequency drift over 20 year life	—	—	±10	ppm

Skyworks歐美晶體,6G路由器晶振,530FC125M000DG六腳晶振

Skywork原廠編碼	生產商	型號	類型	頻率	輸出	電源電壓	頻率穩定度
536BB125M000DG	Skyworks晶振	Si536	XO	125 MHz	LVDS	3.3V	±20ppm
536FB125M000DG	Skyworks晶振	Si536	XO	125 MHz	LVDS	2.5V	±20ppm
536FB156M250DG	Skyworks晶振	Si536	XO	156.25 MHz	LVDS	2.5V	±20ppm
536AB156M250DG	Skyworks晶振	Si536	XO	156.25 MHz	LVPECL	3.3V	±20ppm
536BB156M250DG	Skyworks晶振	Si536	XO	156.25 MHz	LVDS	3.3V	±20ppm
536AC125M000DG	Skyworks晶振	Si536	XO	125 MHz	LVPECL	3.3V	±7ppm
536AC156M250DG	Skyworks晶振	Si536	XO	156.25 MHz	LVPECL	3.3V	±7ppm
536BB000172DGR	Skyworks晶振	Si536	XO	166.6286 MHz	LVDS	3.3V	±20ppm
536BB000175DGR	Skyworks晶振	Si536	XO	167.3316 MHz	LVDS	3.3V	±20ppm
536BB106M250DGR	Skyworks晶振	Si536	XO	106.25 MHz	LVDS	3.3V	±20ppm
536BB150M000DGR	Skyworks晶振	Si536	XO	150 MHz	LVDS	3.3V	±20ppm
536BB155M520DGR	Skyworks晶振	Si536	XO	155.52 MHz	LVDS	3.3V	±20ppm
536BB159M375DGR	Skyworks晶振	Si536	XO	159.375 MHz	LVDS	3.3V	±20ppm
536BC000172DGR	Skyworks晶振	Si536	XO	166.6286 MHz	LVDS	3.3V	±7ppm
536BC000175DGR	Skyworks晶振	Si536	XO	167.3316 MHz	LVDS	3.3V	±7ppm
536BC000292DGR	Skyworks晶振	Si536	XO	161.1328 MHz	LVDS	3.3V	±7ppm
536BC000305DGR	Skyworks晶振	Si536	XO	156.2578 MHz	LVDS	3.3V	±7ppm
536BC106M250DGR	Skyworks晶振	Si536	XO	106.25 MHz	LVDS	3.3V	±7ppm
536BC155M520DGR	Skyworks晶振	Si536	XO	155.52 MHz	LVDS	3.3V	±7ppm
536BC159M375DGR	Skyworks晶振	Si536	XO	159.375 MHz	LVDS	3.3V	±7ppm
536BC312M500DGR	Skyworks晶振	Si536	XO	312.5 MHz	LVDS	3.3V	±7ppm
536FB000172DGR	Skyworks晶振	Si536	XO	166.6286 MHz	LVDS	2.5V	±20ppm
536FB000175DGR	Skyworks晶振	Si536	XO	167.3316 MHz	LVDS	2.5V	±20ppm
536FB000292DGR	Skyworks晶振	Si536	XO	161.1328 MHz	LVDS	2.5V	±20ppm
536FB000305DGR	Skyworks晶振	Si536	XO	156.2578 MHz	LVDS	2.5V	±20ppm
536FB106M250DGR	Skyworks晶振	Si536	XO	106.25 MHz	LVDS	2.5V	±20ppm
536FB150M000DGR	Skyworks晶振	Si536	XO	150 MHz	LVDS	2.5V	±20ppm
536FB155M520DGR	Skyworks晶振	Si536	XO	155.52 MHz	LVDS	2.5V	±20ppm
536FB159M375DGR	Skyworks晶振	Si536	XO	159.375 MHz	LVDS	2.5V	±20ppm
536FC000172DGR	Skyworks晶振	Si536	XO	166.6286 MHz	LVDS	2.5V	±7ppm
536FC000175DGR	Skyworks晶振	Si536	XO	167.3316 MHz	LVDS	2.5V	±7ppm
536FC000292DGR	Skyworks晶振	Si536	XO	161.1328 MHz	LVDS	2.5V	±7ppm
536FC000305DGR	Skyworks晶振	Si536	XO	156.2578 MHz	LVDS	2.5V	±7ppm
536FC000338DGR	Skyworks晶振	Si536	XO	338 kHz	LVDS	2.5V	±7ppm
536FC106M250DGR	Skyworks晶振	Si536	XO	106.25 MHz	LVDS	2.5V	±7ppm
536FC150M000DGR	Skyworks晶振	Si536	XO	150 MHz	LVDS	2.5V	±7ppm
536FC155M520DGR	Skyworks晶振	Si536	XO	155.52 MHz	LVDS	2.5V	±7ppm
536FC156M250DGR	Skyworks晶振	Si536	XO	156.25 MHz	LVDS	2.5V	±7ppm
536FC159M375DGR	Skyworks晶振	Si536	XO	159.375 MHz	LVDS	2.5V	±7ppm
536FC212M500DGR	Skyworks晶振	Si536	XO	212.5 MHz	LVDS	2.5V	±7ppm
536FC312M500DGR	Skyworks晶振	Si536	XO	312.5 MHz	LVDS	2.5V	±7ppm
500DJAA54M0000ACF	Skyworks晶振	Si500D	XO	54 MHz	LVPECL	2.5V	±10ppm
536FC159M375DG	Skyworks晶振	Si536	XO	159.375 MHz	LVDS	2.5V	±7ppm
536FC212M500DG	Skyworks晶振	Si536	XO	212.5 MHz	LVDS	2.5V	±7ppm
536FC312M500DG	Skyworks晶振	Si536	XO	312.5 MHz	LVDS	2.5V	±7ppm
536BB000172DG	Skyworks晶振	Si536	XO	166.6286 MHz	LVDS	3.3V	±20ppm
536BB000175DG	Skyworks晶振	Si536	XO	167.3316 MHz	LVDS	3.3V	±20ppm
536BB106M250DG	Skyworks晶振	Si536	XO	106.25 MHz	LVDS	3.3V	±20ppm
536BB150M000DG	Skyworks晶振	Si536	XO	150 MHz	LVDS	3.3V	±20ppm
536BB155M520DG	Skyworks晶振	Si536	XO	155.52 MHz	LVDS	3.3V	±20ppm
536BB159M375DG	Skyworks晶振	Si536	XO	159.375 MHz	LVDS	3.3V	±20ppm
536BC000172DG	Skyworks晶振	Si536	XO	166.6286 MHz	LVDS	3.3V	±7ppm
536BC000175DG	Skyworks晶振	Si536	XO	167.3316 MHz	LVDS	3.3V	±7ppm
536BC000292DG	Skyworks晶振	Si536	XO	161.1328 MHz	LVDS	3.3V	±7ppm
536BC000305DG	Skyworks晶振	Si536	XO	156.2578 MHz	LVDS	3.3V	±7ppm
536BC106M250DG	Skyworks晶振	Si536	XO	106.25 MHz	LVDS	3.3V	±7ppm
536BC155M520DG	Skyworks晶振	Si536	XO	155.52 MHz	LVDS	3.3V	±7ppm
536BC159M375DG	Skyworks晶振	Si536	XO	159.375 MHz	LVDS	3.3V	±7ppm
536BC312M500DG	Skyworks晶振	Si536	XO	312.5 MHz	LVDS	3.3V	±7ppm
536FB000172DG	Skyworks晶振	Si536	XO	166.6286 MHz	LVDS	2.5V	±20ppm
536FB000175DG	Skyworks晶振	Si536	XO	167.3316 MHz	LVDS	2.5V	±20ppm
536FB000292DG	Skyworks晶振	Si536	XO	161.1328 MHz	LVDS	2.5V	±20ppm
536FB000305DG	Skyworks晶振	Si536	XO	156.2578 MHz	LVDS	2.5V	±20ppm
536FB106M250DG	Skyworks晶振	Si536	XO	106.25 MHz	LVDS	2.5V	±20ppm
536FB150M000DG	Skyworks晶振	Si536	XO	150 MHz	LVDS	2.5V	±20ppm
536FB155M520DG	Skyworks晶振	Si536	XO	155.52 MHz	LVDS	2.5V	±20ppm
536FB159M375DG	Skyworks晶振	Si536	XO	159.375 MHz	LVDS	2.5V	±20ppm
536FC000172DG	Skyworks晶振	Si536	XO	166.6286 MHz	LVDS	2.5V	±7ppm
536FC000175DG	Skyworks晶振	Si536	XO	167.3316 MHz	LVDS	2.5V	±7ppm
536FC000292DG	Skyworks晶振	Si536	XO	161.1328 MHz	LVDS	2.5V	±7ppm
536FC000305DG	Skyworks晶振	Si536	XO	156.2578 MHz	LVDS	2.5V	±7ppm
536FC000338DG	Skyworks晶振	Si536	XO	338 kHz	LVDS	2.5V	±7ppm
536FC106M250DG	Skyworks晶振	Si536	XO	106.25 MHz	LVDS	2.5V	±7ppm
536FC150M000DG	Skyworks晶振	Si536	XO	150 MHz	LVDS	2.5V	±7ppm
536FC155M520DG	Skyworks晶振	Si536	XO	155.52 MHz	LVDS	2.5V	±7ppm
536FC156M250DG	Skyworks晶振	Si536	XO	156.25 MHz	LVDS	2.5V	±7ppm
536AB000335DGR	Skyworks晶振	Si536	XO	156.2539 MHz	LVPECL	3.3V	±20ppm
536AB100M000DGR	Skyworks晶振	Si536	XO	100 MHz	LVPECL	3.3V	±20ppm
536AB125M000DGR	Skyworks晶振	Si536	XO	125 MHz	LVPECL	3.3V	±20ppm
