首頁歐美晶振 SKYWORKS晶振550CD10M0000DG小尺寸晶振,Skyworks晶振,智能輔助駕駛晶振

550CD10M0000DG小尺寸晶振,Skyworks晶振,智能輔助駕駛晶振

編號：54387854
頻率：10MHz

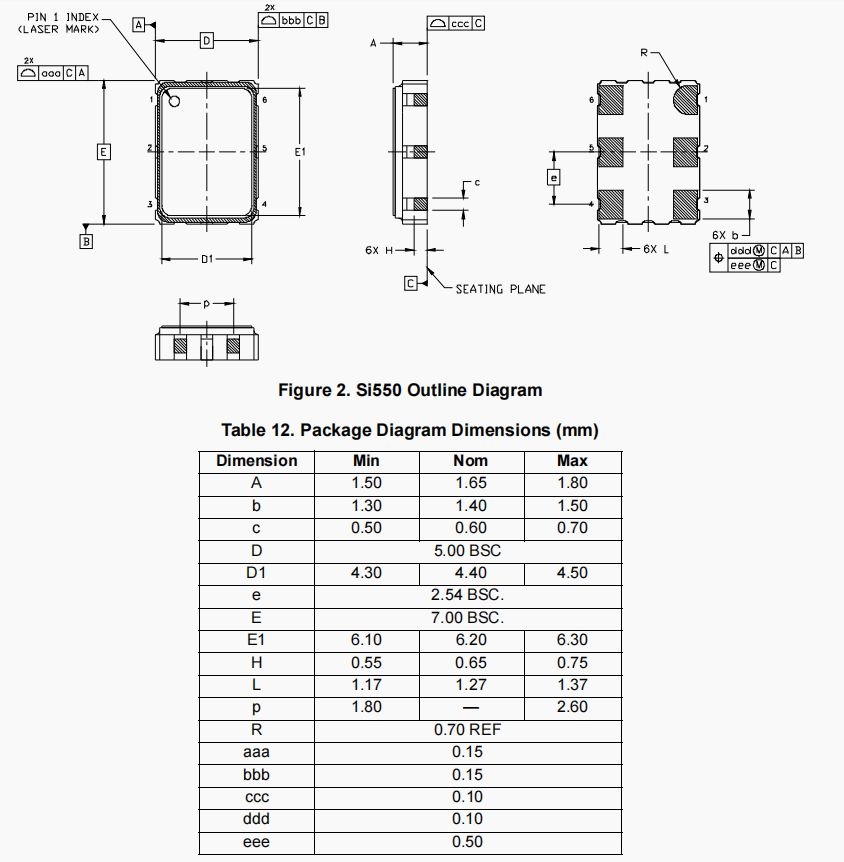

尺寸：7050mm

550CD10M0000DG小尺寸晶振,Skyworks晶振,智能輔助駕駛晶振，Si550VCXO采用SkyworksSolutions先進的DSPLL電路，在高頻下提供低抖動時鐘。Si550支持從10到945MHz的任意頻率和1417MHz的選擇頻率。與傳統VCXOs不同的是，S...

分享到

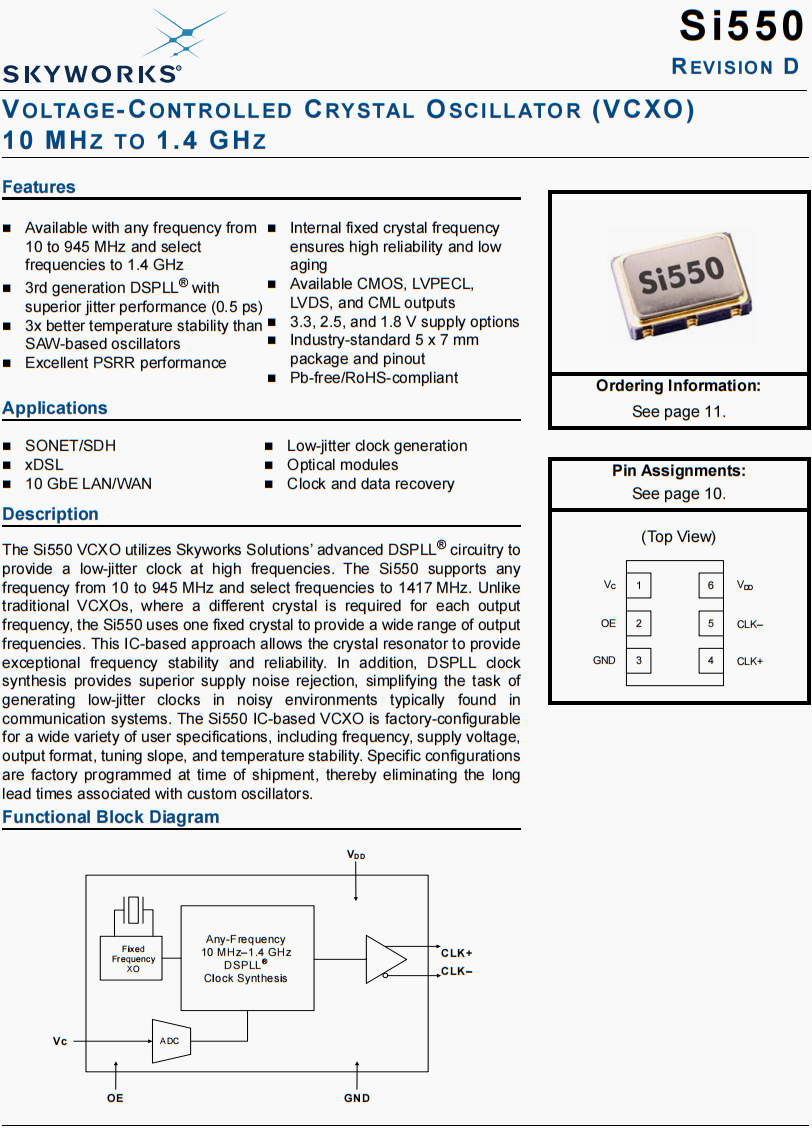

550CD10M0000DG小尺寸晶振,Skyworks晶振,智能輔助駕駛晶振，Si550 VCXO采用Skyworks Solutions先進的DSPLL®電路，在高頻下提供低抖動時鐘。Si550支持從10到945 MHz的任意頻率和1417 MHz的選擇頻率。與傳統VCXOs不同的是，Si550使用一個固定的晶體來提供廣泛的輸出頻率。這種基于集成電路的方法允許晶體諧振器提供卓越的頻率穩定性和可靠性。此外，DSPLL時鐘合成提供了優越的電源噪聲抑制，簡化了在通信系統中通常發現的嘈雜環境中產生低抖動時鐘的任務。Si550基于ic的VCXO可在工廠配置，以滿足各種用戶規格，包括頻率，電源電壓，輸出格式，調諧斜率和溫度穩定性。美國Skyworks晶振公司，高品質晶振，進口晶振，有源晶振，壓控晶振，VCXO晶振，高精度晶振，輔助駕駛模塊晶振，6G路由器晶振.

550CD10M0000DG小尺寸晶振,Skyworks晶振,智能輔助駕駛晶振

參數	符號	試驗條件	最小值	典型的	最大值	單位
電源電壓	VDD	3.3 V option	2.97	3.3	3.63	V
		2.5 V option	2.25	2.5	2.75	V
		1.8 V option	1.71	1.8	1.89	V
供應電流	IDD	Output enabled LVPECL CML LVDS CMOS	— — — —	120 108 99 90	130 117 108 98	mA
供應電流	IDD	tristate mode	—	60	75	mA
輸出啟用		VIH	0.75 x VDD	—	—	V
輸出啟用		VIL	—	—	0.5	V
工作溫度范圍	TA		–40	—	85	°C
控制電壓調整坡度	KV	10 to 90% of VDD	— —	33 45	— —
			— —	90 135	— —	ppm/V
			—	180	—
			—	356	—
控制電壓線性	LVC	BSL	–5	±1	+5	%
控制電壓線性	LVC	Incremental	–10	±5	+10	%
調制帶寬	BW		9.3	10.0	10.7	kHz
輸入抗阻	ZVC		500	—	—	k?
標稱控制電壓	VCNOM	@ fO	—	VDD/2	—	V
控制電壓協調范圍	VC		0		VDD	V
標稱頻率	fO	LVDS/CML/LVPECL	10	—	945	MHz
標稱頻率	fO	CMOS	10	—	160	MHz
溫度穩定度		TA = –40 to +85 ºC	–20 –50 –100	— — —	20 +50 +100	ppm
老化		Frequency drift over first year.	—	—	±3	ppm
老化		Frequency drift over 15 year life.	—	—	±10	ppm

550CD10M0000DG小尺寸晶振,Skyworks晶振,智能輔助駕駛晶振

Skywork原廠編碼	生產商	型號	類型	頻率	輸出	電源電壓	頻率穩定度
536BB125M000DG	Skyworks晶振	Si536	XO	125 MHz	LVDS	3.3V	±20ppm
536FB125M000DG	Skyworks晶振	Si536	XO	125 MHz	LVDS	2.5V	±20ppm
536FB156M250DG	Skyworks晶振	Si536	XO	156.25 MHz	LVDS	2.5V	±20ppm
536AB156M250DG	Skyworks晶振	Si536	XO	156.25 MHz	LVPECL	3.3V	±20ppm
536BB156M250DG	Skyworks晶振	Si536	XO	156.25 MHz	LVDS	3.3V	±20ppm
536AC125M000DG	Skyworks晶振	Si536	XO	125 MHz	LVPECL	3.3V	±7ppm
536AC156M250DG	Skyworks晶振	Si536	XO	156.25 MHz	LVPECL	3.3V	±7ppm
536BB000172DGR	Skyworks晶振	Si536	XO	166.6286 MHz	LVDS	3.3V	±20ppm
536BB000175DGR	Skyworks晶振	Si536	XO	167.3316 MHz	LVDS	3.3V	±20ppm
536BB106M250DGR	Skyworks晶振	Si536	XO	106.25 MHz	LVDS	3.3V	±20ppm
536BB150M000DGR	Skyworks晶振	Si536	XO	150 MHz	LVDS	3.3V	±20ppm
536BB155M520DGR	Skyworks晶振	Si536	XO	155.52 MHz	LVDS	3.3V	±20ppm
536BB159M375DGR	Skyworks晶振	Si536	XO	159.375 MHz	LVDS	3.3V	±20ppm
536BC000172DGR	Skyworks晶振	Si536	XO	166.6286 MHz	LVDS	3.3V	±7ppm
536BC000175DGR	Skyworks晶振	Si536	XO	167.3316 MHz	LVDS	3.3V	±7ppm
536BC000292DGR	Skyworks晶振	Si536	XO	161.1328 MHz	LVDS	3.3V	±7ppm
536BC000305DGR	Skyworks晶振	Si536	XO	156.2578 MHz	LVDS	3.3V	±7ppm
536BC106M250DGR	Skyworks晶振	Si536	XO	106.25 MHz	LVDS	3.3V	±7ppm
536BC155M520DGR	Skyworks晶振	Si536	XO	155.52 MHz	LVDS	3.3V	±7ppm
536BC159M375DGR	Skyworks晶振	Si536	XO	159.375 MHz	LVDS	3.3V	±7ppm
536BC312M500DGR	Skyworks晶振	Si536	XO	312.5 MHz	LVDS	3.3V	±7ppm
536FB000172DGR	Skyworks晶振	Si536	XO	166.6286 MHz	LVDS	2.5V	±20ppm
536FB000175DGR	Skyworks晶振	Si536	XO	167.3316 MHz	LVDS	2.5V	±20ppm
536FB000292DGR	Skyworks晶振	Si536	XO	161.1328 MHz	LVDS	2.5V	±20ppm
536FB000305DGR	Skyworks晶振	Si536	XO	156.2578 MHz	LVDS	2.5V	±20ppm
536FB106M250DGR	Skyworks晶振	Si536	XO	106.25 MHz	LVDS	2.5V	±20ppm
536FB150M000DGR	Skyworks晶振	Si536	XO	150 MHz	LVDS	2.5V	±20ppm
536FB155M520DGR	Skyworks晶振	Si536	XO	155.52 MHz	LVDS	2.5V	±20ppm
536FB159M375DGR	Skyworks晶振	Si536	XO	159.375 MHz	LVDS	2.5V	±20ppm
536FC000172DGR	Skyworks晶振	Si536	XO	166.6286 MHz	LVDS	2.5V	±7ppm
536FC000175DGR	Skyworks晶振	Si536	XO	167.3316 MHz	LVDS	2.5V	±7ppm
536FC000292DGR	Skyworks晶振	Si536	XO	161.1328 MHz	LVDS	2.5V	±7ppm
536FC000305DGR	Skyworks晶振	Si536	XO	156.2578 MHz	LVDS	2.5V	±7ppm
536FC000338DGR	Skyworks晶振	Si536	XO	338 kHz	LVDS	2.5V	±7ppm
536FC106M250DGR	Skyworks晶振	Si536	XO	106.25 MHz	LVDS	2.5V	±7ppm
536FC150M000DGR	Skyworks晶振	Si536	XO	150 MHz	LVDS	2.5V	±7ppm
536FC155M520DGR	Skyworks晶振	Si536	XO	155.52 MHz	LVDS	2.5V	±7ppm
536FC156M250DGR	Skyworks晶振	Si536	XO	156.25 MHz	LVDS	2.5V	±7ppm
536FC159M375DGR	Skyworks晶振	Si536	XO	159.375 MHz	LVDS	2.5V	±7ppm
536FC212M500DGR	Skyworks晶振	Si536	XO	212.5 MHz	LVDS	2.5V	±7ppm
536FC312M500DGR	Skyworks晶振	Si536	XO	312.5 MHz	LVDS	2.5V	±7ppm
500DJAA54M0000ACF	Skyworks晶振	Si500D	XO	54 MHz	LVPECL	2.5V	±10ppm
536FC159M375DG	Skyworks晶振	Si536	XO	159.375 MHz	LVDS	2.5V	±7ppm
536FC212M500DG	Skyworks晶振	Si536	XO	212.5 MHz	LVDS	2.5V	±7ppm
536FC312M500DG	Skyworks晶振	Si536	XO	312.5 MHz	LVDS	2.5V	±7ppm
536BB000172DG	Skyworks晶振	Si536	XO	166.6286 MHz	LVDS	3.3V	±20ppm
536BB000175DG	Skyworks晶振	Si536	XO	167.3316 MHz	LVDS	3.3V	±20ppm
536BB106M250DG	Skyworks晶振	Si536	XO	106.25 MHz	LVDS	3.3V	±20ppm
536BB150M000DG	Skyworks晶振	Si536	XO	150 MHz	LVDS	3.3V	±20ppm
536BB155M520DG	Skyworks晶振	Si536	XO	155.52 MHz	LVDS	3.3V	±20ppm
536BB159M375DG	Skyworks晶振	Si536	XO	159.375 MHz	LVDS	3.3V	±20ppm
536BC000172DG	Skyworks晶振	Si536	XO	166.6286 MHz	LVDS	3.3V	±7ppm
536BC000175DG	Skyworks晶振	Si536	XO	167.3316 MHz	LVDS	3.3V	±7ppm
536BC000292DG	Skyworks晶振	Si536	XO	161.1328 MHz	LVDS	3.3V	±7ppm
536BC000305DG	Skyworks晶振	Si536	XO	156.2578 MHz	LVDS	3.3V	±7ppm
536BC106M250DG	Skyworks晶振	Si536	XO	106.25 MHz	LVDS	3.3V	±7ppm
536BC155M520DG	Skyworks晶振	Si536	XO	155.52 MHz	LVDS	3.3V	±7ppm
536BC159M375DG	Skyworks晶振	Si536	XO	159.375 MHz	LVDS	3.3V	±7ppm
536BC312M500DG	Skyworks晶振	Si536	XO	312.5 MHz	LVDS	3.3V	±7ppm
536FB000172DG	Skyworks晶振	Si536	XO	166.6286 MHz	LVDS	2.5V	±20ppm
536FB000175DG	Skyworks晶振	Si536	XO	167.3316 MHz	LVDS	2.5V	±20ppm
536FB000292DG	Skyworks晶振	Si536	XO	161.1328 MHz	LVDS	2.5V	±20ppm
536FB000305DG	Skyworks晶振	Si536	XO	156.2578 MHz	LVDS	2.5V	±20ppm
536FB106M250DG	Skyworks晶振	Si536	XO	106.25 MHz	LVDS	2.5V	±20ppm
536FB150M000DG	Skyworks晶振	Si536	XO	150 MHz	LVDS	2.5V	±20ppm
536FB155M520DG	Skyworks晶振	Si536	XO	155.52 MHz	LVDS	2.5V	±20ppm
536FB159M375DG	Skyworks晶振	Si536	XO	159.375 MHz	LVDS	2.5V	±20ppm
536FC000172DG	Skyworks晶振	Si536	XO	166.6286 MHz	LVDS	2.5V	±7ppm
536FC000175DG	Skyworks晶振	Si536	XO	167.3316 MHz	LVDS	2.5V	±7ppm
536FC000292DG	Skyworks晶振	Si536	XO	161.1328 MHz	LVDS	2.5V	±7ppm
536FC000305DG	Skyworks晶振	Si536	XO	156.2578 MHz	LVDS	2.5V	±7ppm
536FC000338DG	Skyworks晶振	Si536	XO	338 kHz	LVDS	2.5V	±7ppm
536FC106M250DG	Skyworks晶振	Si536	XO	106.25 MHz	LVDS	2.5V	±7ppm
536FC150M000DG	Skyworks晶振	Si536	XO	150 MHz	LVDS	2.5V	±7ppm
536FC155M520DG	Skyworks晶振	Si536	XO	155.52 MHz	LVDS	2.5V	±7ppm
536FC156M250DG	Skyworks晶振	Si536	XO	156.25 MHz	LVDS	2.5V	±7ppm
536AB000335DGR	Skyworks晶振	Si536	XO	156.2539 MHz	LVPECL	3.3V	±20ppm
536AB100M000DGR	Skyworks晶振	Si536	XO	100 MHz	LVPECL	3.3V	±20ppm
536AB125M000DGR	Skyworks晶振	Si536	XO	125 MHz	LVPECL	3.3V	±20ppm
