- 編號：3661177
- 頻率：4.9152MHz
- 尺寸：12.5*4.8mm

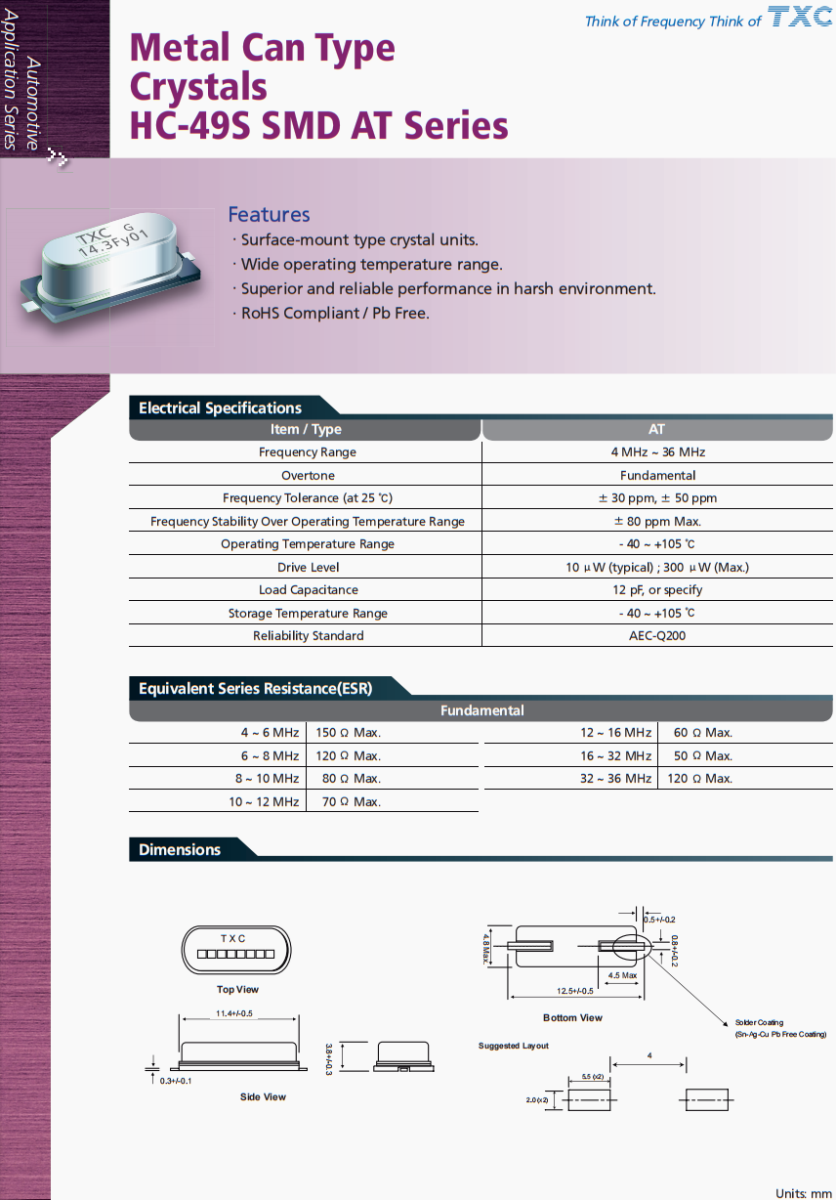

臺灣晶技晶振,車載多媒體晶振,AT-4.9152MDGE-T晶振
臺灣晶技晶振,車載多媒體晶振,AT-4.9152MDGE-T晶振,臺灣TXC晶振公司，晶技晶振，臺灣晶振，進口晶振，石英晶振，四腳晶振，AT-20.500MDHQ-T晶振，貼片晶振，無源晶振，網絡設備晶振，汽車晶振，高品質晶振，汽車氛圍燈...
.jpg)
臺灣晶技晶振,車載多媒體晶振,AT-4.9152MDGE-T晶振,臺灣TXC晶振公司，晶技晶振，臺灣晶振，進口晶振，石英晶振，四腳晶振，AT-20.500MDHQ-T晶振，貼片晶振，無源晶振，網絡設備晶振，汽車晶振，高品質晶振，汽車氛圍燈晶振，大燈控制器晶振，小尺寸晶振，耐高溫晶振，金屬罐型，晶體， AT系列HC-49S SMD，特征，表面貼裝型晶體單元。工作溫度范圍寬。·惡劣環境下性能優越可靠。符合RoHS標準/無鉛。
.gif)
臺灣晶技晶振,車載多媒體晶振,AT-4.9152MDGE-T晶振
| 型號 | AT |
| 頻率范圍 | 4 MHz ~ 36 MHz |
| 工作模式 | Fundamental |
| 頻率容差 | ± 30 ppm, ± 50 ppm |
| 溫度范圍內的頻率穩定度 | ± 80 ppm Max. |
| 工作溫度 | - 40 ~ +105 ℃ |
| 驅動電平 | 10 μW (typical) ; 300 μW (Max.) |
| 負載電容 | 12 pF, or specify |
| 儲存溫度范圍 | - 40 ~ +105 ℃ |
| 可靠性標準 | AEC-Q200 |
臺灣晶技晶振,車載多媒體晶振,AT-4.9152MDGE-T晶振
.jpg)
.png)
.gif)
| TXC原廠編碼 | 生產商品牌 | 型號 | 頻率 | 頻率穩定度 | 頻率容差 | 負載電容 |
| AT-6.000MAGB-T | TXC晶振 | AT | 6MHz | ±50ppm | ±30ppm | 8.5pF |
| AT-16.000MAOQ-T | TXC晶振 | AT | 16MHz | ±100ppm | ±30ppm | 10pF |
| AT-16.000MAPY-T | TXC晶振 | AT | 16MHz | ±50ppm | ±30ppm | 7pF |
| AT-16.000MAQE-T | TXC晶振 | AT | 16MHz | ±30ppm | ±30ppm | 12pF |
| AT-16.000MBGJ-T | TXC晶振 | AT | 16MHz | ±50ppm | ±50ppm | 18pF |
| AT-16.000MDHE-T | TXC晶振 | AT | 16MHz | ±30ppm | ±20ppm | 12pF |
| AT-16.000MDHK-T | TXC晶振 | AT | 16MHz | ±30ppm | ±20ppm | 20pF |
| AT-16.000MDIE-T | TXC晶振 | AT | 16MHz | ±20ppm | ±20ppm | 12pF |
| AT-16.000MDIJ-T | TXC晶振 | AT | 16MHz | ±20ppm | ±20ppm | 18pF |
| AT-16.000MDIV-T | TXC晶振 | AT | 16MHz | ±20ppm | ±20ppm | 8pF |
| AT-16.666MBGJ-T | TXC晶振 | AT | 16.666MHz | ±50ppm | ±50ppm | 18pF |
| AT-16.9344MAHE-T | TXC晶振 | AT | 16.9344MHz | ±30ppm | ±30ppm | 12pF |
| AT-16.9344MDHE-T | TXC晶振 | AT | 16.9344MHz | ±30ppm | ±20ppm | 12pF |
| AT-18.000MAGI-T | TXC晶振 | AT | 18MHz | ±50ppm | ±30ppm | 16pF |
| AT-18.432MAPQ-T | TXC晶振 | AT | 18.432MHz | ±50ppm | ±30ppm | 10pF |
| AT-20.000MDGE-T | TXC晶振 | AT | 20MHz | ±50ppm | ±20ppm | 12pF |
| AT-20.49978MDHQ-T | TXC晶振 | AT | 20.49978MHz | ±30ppm | ±20ppm | 10pF |
| AT-20.500MDHQ-T | TXC晶振 | AT | 20.5MHz | ±30ppm | ±20ppm | 10pF |
| AT-23.51222MFHE-T | TXC晶振 | AT | 23.51222MHz | ±30ppm | ±15ppm | 12pF |
| AT-24.000MAHE-T | TXC晶振 | AT | 24MHz | ±30ppm | ±30ppm | 12pF |
| AT-24.000MAHJ-T | TXC晶振 | AT | 24MHz | ±30ppm | ±30ppm | 18pF |
| AT-24.000MAHK-T | TXC晶振 | AT | 24MHz | ±30ppm | ±30ppm | 20pF |
| AT-24.576MAGD-T | TXC晶振 | AT | 24.576MHz | ±50ppm | ±30ppm | 11pF |
| AT-24.576MDHK-T | TXC晶振 | AT | 24.576MHz | ±30ppm | ±20ppm | 20pF |
| AT-25.000MAHE-T | TXC晶振 | AT | 25MHz | ±30ppm | ±30ppm | 12pF |
| AT-27.000MAGI-T | TXC晶振 | AT | 27MHz | ±50ppm | ±30ppm | 16pF |
| AT-27.000MAHK-T | TXC晶振 | AT | 27MHz | ±30ppm | ±30ppm | 20pF |
| AT-27.000MAOJ-T | TXC晶振 | AT | 27MHz | ±100ppm | ±30ppm | 18pF |
| AT-27.000MAPJ-T | TXC晶振 | AT | 27MHz | ±50ppm | ±30ppm | 18pF |
| AT-27.120MAHQ-T | TXC晶振 | AT | 27.12MHz | ±30ppm | ±30ppm | 10pF |
| AT-28.63636MAGK-T | TXC晶振 | AT | 28.63636MHz | ±50ppm | ±30ppm | 20pF |
| AT-28.63636MAHE-T | TXC晶振 | AT | 28.63636MHz | ±30ppm | ±30ppm | 12pF |
| AT-28.63636MAHI-T | TXC晶振 | AT | 28.63636MHz | ±30ppm | ±30ppm | 16pF |
| AT-28.63636MDGE-T | TXC晶振 | AT | 28.63636MHz | ±50ppm | ±20ppm | 12pF |
| AT-30.429MAGE-T | TXC晶振 | AT | 30.429MHz | ±50ppm | ±30ppm | 12pF |
| AT-33.8688MAHQ-T | TXC晶振 | AT | 33.8688MHz | ±30ppm | ±30ppm | 10pF |
| AT-33.8688MDHJ-T | TXC晶振 | AT | 33.8688MHz | ±30ppm | ±20ppm | 18pF |
| AT-33.8688MDHQ-T | TXC晶振 | AT | 33.8688MHz | ±30ppm | ±20ppm | 10pF |
| AT-37.050MAHV-T | TXC晶振 | AT | 37.05MHz | ±30ppm | ±30ppm | 8pF |
| AT-4.000MAFK-T | TXC晶振 | AT | 4MHz | ±100ppm | ±30ppm | 20pF |
| AT-4.000MAGH-T | TXC晶振 | AT | 4MHz | ±50ppm | ±30ppm | 15pF |
| AT-4.000MAGJ-T | TXC晶振 | AT | 4MHz | ±50ppm | ±30ppm | 18pF |
| AT-4.000MAHE-T | TXC晶振 | AT | 4MHz | ±30ppm | ±30ppm | 12pF |
| AT-4.000MAHI-T | TXC晶振 | AT | 4MHz | ±30ppm | ±30ppm | 16pF |
| AT-4.000MAHK-T | TXC晶振 | AT | 4MHz | ±30ppm | ±30ppm | 20pF |
| AT-4.000MAPE-T | TXC晶振 | AT | 4MHz | ±50ppm | ±30ppm | 12pF |
| AT-4.000MBFI-T | TXC晶振 | AT | 4MHz | ±100ppm | ±50ppm | 16pF |
| AT-4.000MDGE-T | TXC晶振 | AT | 4MHz | ±50ppm | ±20ppm | 12pF |
| AT-4.000MDGI-T | TXC晶振 | AT | 4MHz | ±50ppm | ±20ppm | 16pF |
| AT-4.000MDGJ-T | TXC晶振 | AT | 4MHz | ±50ppm | ±20ppm | 18pF |
| AT-4.000MDHC-T | TXC晶振 | AT | 4MHz | ±30ppm | ±20ppm | 9pF |
| AT-4.000MDHJ-T | TXC晶振 | AT | 4MHz | ±30ppm | ±20ppm | 18pF |
| AT-4.000MFHH-T | TXC晶振 | AT | 4MHz | ±30ppm | ±15ppm | 15pF |
| AT-4.007MAHQ-T | TXC晶振 | AT | 4.007MHz | ±30ppm | ±30ppm | 10pF |
| AT-4.9152MDGE-T | TXC晶振 | AT | 4.9152MHz | ±50ppm | ±20ppm | 12pF |
| AT-41.600MDGQ-T | TXC晶振 | AT | 41.6MHz | ±50ppm | ±20ppm | 10pF |
| AT-5.000MAHE-T | TXC晶振 | AT | 5MHz | ±30ppm | ±30ppm | 12pF |
| AT-5.000MAHI-T | TXC晶振 | AT | 5MHz | ±30ppm | ±30ppm | 16pF |
| AT-6.000MABK-T | TXC晶振 | AT | 6MHz | ±50ppm | ±30ppm | 20pF |
