首頁歐美晶振 ABRACON晶振ABLSG\ABLSG-30.000MHZ-D2Y-F-T\醫療電子\30MHZ\SMD

ABLSG\ABLSG-30.000MHZ-D2Y-F-T\醫療電子\30MHZ\SMD

編號：55426109
頻率：30MHZ
尺寸：11.4*4.7mm

ABLSG\ABLSG-30.000MHZ-D2Y-F-T\醫療電子\30MHZ\SMD，尺寸為11.4*4.7mm,頻率為30MHZ，Abracon晶振，美國艾博康晶振，無源晶體，水晶振動子，石英晶振，SMD晶振，石英晶體諧振器，無源貼片晶振，大尺寸晶振，高品質晶振...

分享到

ABLSG\ABLSG-30.000MHZ-D2Y-F-T\醫療電子\30MHZ\SMD，尺寸為11.4*4.7mm,頻率為30MHZ，Abracon晶振，美國艾博康晶振，無源晶體，水晶振動子，石英晶振，SMD晶振，石英晶體諧振器，無源貼片晶振，大尺寸晶振，高品質晶振，醫療電子專用晶振，無線應用晶振，微處理器晶振，計算機晶振，調制解調器晶振。
產品主要應用范圍：電磁干擾敏感應用，計算機、調制解調器、微處理器，醫療電子，無線應用等領域。ABLSG\ABLSG-30.000MHZ-D2Y-F-T\醫療電子\30MHZ\SMD.

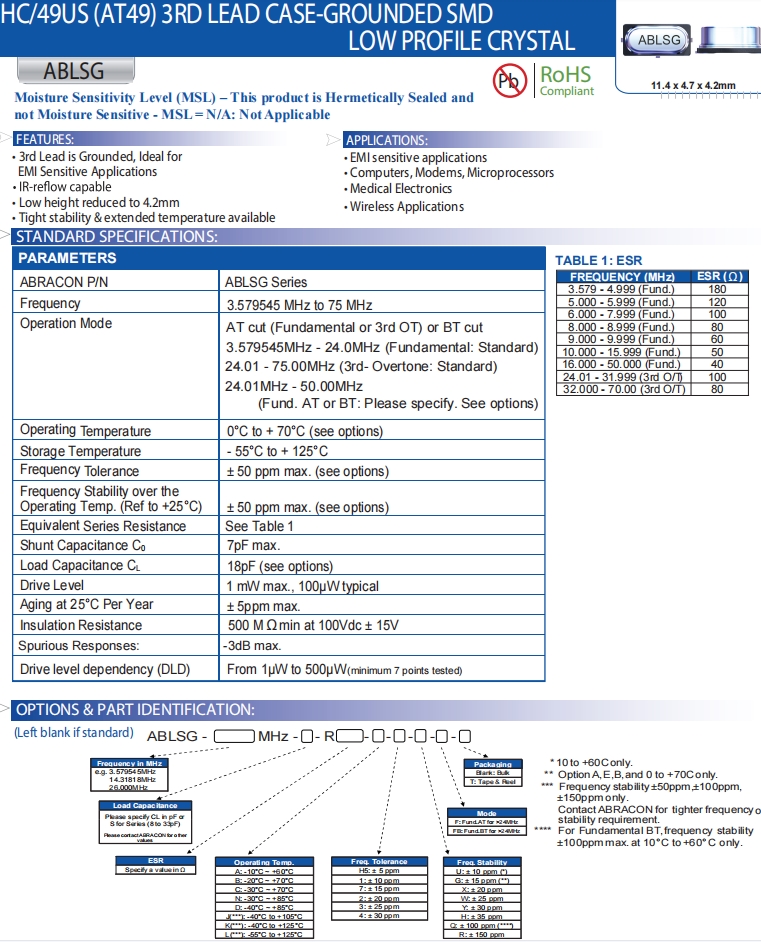

ABLSG\ABLSG-30.000MHZ-D2Y-F-T\醫療電子\30MHZ\SMD 參數表

ABRACON P/N	ABLSG Series
Frequency	3.579545MHzto75MHz
Operation Mode	AT cut (Fundamental or 3rd OT) or BT cut 3.579545MHz - 24.0MHz (Fundamental: Standard) 24.01 - 75.00MHz (3rd- Overtone: Standard) 24.01MHz - 50.00MHz (Fund. AT or BT: Please specify. See options)
Operating Temperature	0°C to + 70°C (see options)
Storage Temperature	- 55°C to + 125°C
Frequency Tolerance	± 50 ppm max. (see options)
Frequency Stability over the Operating Temp. (Ref to +25°C)	± 50 ppm max. (see options)
Equivalent Series Resistance	See Table 1
Shunt Capacitance C0	7pF max.
Load Capacitance CL	18pF (see options)
Drive Level	1 mW max , 100µW typical
Aging at 25°C Per Year	± 5ppm max
Insulation Resistance	500 M ? min at 100Vdc ± 15V
Spurious Responses:	-3dB max.
Drive level dependency (DLD)	From 1µW to 500µW (minimum 7 points tested)

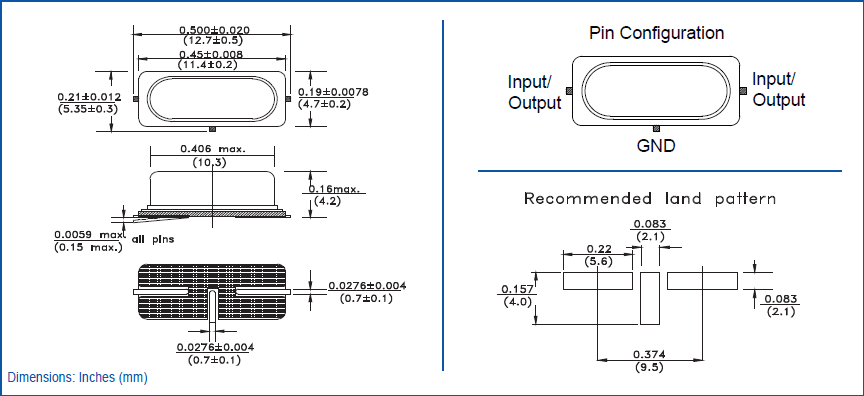

ABLSG\ABLSG-30.000MHZ-D2Y-F-T\醫療電子\30MHZ\SMD 尺寸圖

產品特點：

3號引線接地，適合

電磁干擾敏感應用

•低高度降低到4.2mm

•嚴密的穩定性和延長的溫度可用

更多相關艾博康晶振型號

原廠編碼	廠家	型號	系列	頻率
ABLSG-4.9152MHZ-D2Y-T	Abracon晶振	ABLSG	MHz Crystal	4.9152MHz
ABLSG-25.000MHZ-D2Y-F-T	Abracon晶振	ABLSG	MHz Crystal	25MHz
ABLSG-4.000MHZ-D2Y-T	Abracon晶振	ABLSG	MHz Crystal	4MHz
ABLSG-12.000MHZ-D2Y-T	Abracon晶振	ABLSG	MHz Crystal	12MHz
ABLSG-8.000MHZ-D2Y-T	Abracon晶振	ABLSG	MHz Crystal	8MHz
ABLSG-10.000MHZ-D2Y-T	Abracon晶振	ABLSG	MHz Crystal	10MHz
ABLSG-3.6864MHZ-D2Y-T	Abracon晶振	ABLSG	MHz Crystal	3.6864MHz
ABLSG-3.579545MHZ-D2Y-T	Abracon晶振	ABLSG	MHz Crystal	3.579545MHz
ABLSG-4.433619MHZ-D2Y-T	Abracon晶振	ABLSG	MHz Crystal	4.433619MHz
ABLSG-6.144MHZ-D2Y-T	Abracon晶振	ABLSG	MHz Crystal	6.144MHz
ABLSG-7.3728MHZ-D2Y-T	Abracon晶振	ABLSG	MHz Crystal	7.3728MHz
ABLSG-14.7456MHZ-D2Y-T	Abracon晶振	ABLSG	MHz Crystal	14.7456MHz
ABLSG-18.000MHZ-D2Y-T	Abracon晶振	ABLSG	MHz Crystal	18MHz
ABLSG-27.000MHZ-D2Y-F-T	Abracon晶振	ABLSG	MHz Crystal	27MHz
ABLSG-30.000MHZ-D2Y-F-T	Abracon晶振	ABLSG	MHz Crystal	30MHz
ABLSG-10.240MHZ-D2Y-T	ABRACON晶振	ABLSG	MHz Crystal	10.24MHz
ABLSG-11.0592MHZ-D2Y-T	Abracon晶振	ABLSG	MHz Crystal	11.0592MHz
ABLSG-18.432MHZ-D2Y-T	Abracon晶振	ABLSG	MHz Crystal	18.432MHz
ABLSG-6.7458MHZ-D2Y-T	Abracon晶振	ABLSG	MHz Crystal	6.7458MHz
ABLSG-9.216MHZ-D2Y-T	Abracon晶振	ABLSG	MHz Crystal	9.216MHz
ABLSG-5.000MHZ-D2Y-T	Abracon晶振	ABLSG	MHz Crystal	5MHz
ABLSG-15.360MHZ-D2Y-T	Abracon晶振	ABLSG	MHz Crystal	15.36MHz
ABLSG-16.9344MHZ-D2Y-T	Abracon晶振	ABLSG	MHz Crystal	16.9344MHz
ABLSG-9.8304MHZ-D2Y-T	Abracon晶振	ABLSG	MHz Crystal	9.8304MHz
ABLSG-20.000MHZ-D2Y-T	Abracon晶振	ABLSG	MHz Crystal	20MHz
ABLSG-13.000MHZ-D2Y-T	Abracon晶振	ABLSG	MHz Crystal	13MHz
ABLSG-16.384MHZ-D2Y-T	Abracon晶振	ABLSG	MHz Crystal	16.384MHz
ABLSG-24.576MHZ-D2Y-F-T	Abracon晶振	ABLSG	MHz Crystal	24.576MHz
ABLSG-19.6608MHZ-D2Y-T	Abracon晶振	ABLSG	MHz Crystal	19.6608MHz
ABLSG-24.000MHZ-D2Y-T	Abracon晶振	ABLSG	MHz Crystal	24MHz
ABLSG-16.000MHZ-D2Y-T	Abracon晶振	ABLSG	MHz Crystal	16MHz
ABLSG-28.63636MHZ-D2Y-F-T	Abracon晶振	ABLSG	MHz Crystal	28.63636MHz
ABLSG-6.000MHZ-D2Y-T	Abracon晶振	ABLSG	MHz Crystal	6MHz
ABLSG-4.194304MHZ-D2Y-T	Abracon晶振	ABLSG	MHz Crystal	4.194304MHz
ABLSG-4.500MHZ-D2Y-T	Abracon晶振	ABLSG	MHz Crystal	4.5MHz
ABLSG-12.288MHZ-D2Y-T	Abracon晶振	ABLSG	MHz Crystal	12.288MHz
ABLSG-13.500MHZ-D2Y-T	Abracon晶振	ABLSG	MHz Crystal	13.5MHz
ABLSG-14.31818MHZ-D2Y-T	Abracon晶振	ABLSG	MHz Crystal	14.31818MHz
ABLSG-15.000MHZ-D2Y-T	Abracon晶振	ABLSG	MHz Crystal	15MHz
